Zigbee SONOFF MINI-ZB2GS 2 Gang

Zigbee SONOFF MINI-ZB2GS 2 Gang

R 465.00 ZAR
R 550.00 ZAR R 465.00 ZAR
Sale Sold out
Tax included.

26 in stock







🔀 Two Circuits, One Compact Module

Zigbee 3.0 dual-channel smart switch. Control two lights or appliances independently from a single module hidden behind your wall switch. Acts as a Zigbee router to strengthen your mesh network.

🚚
Free Delivery
Orders over R2,500
🇿🇦
Local Stock
Ships from Gauteng
🛡️
1 Year Warranty
Manufacturer

✨ What Makes This Special

  • Dual-channel control — two independent circuits from one module (10A per gang, 16A total)
  • Zigbee 3.0 — works with Home Assistant, eWeLink, Alexa & Google
  • Zigbee router with Turbo mode — boosts signal and extends mesh coverage
  • External switch support — connect existing wall switches (rocker or push button)
  • Detach relay mode — physical switches and smart control work independently
  • Stepper function — one button cycles through multiple scenes for both channels
  • Power-on state — choose on, off, or last state after power returns
  • Compact design — fits behind wall switches in standard boxes (min 60mm depth)
  • Overheat & surge protection — built-in safety for daily use
  • 1 Year Warranty — full manufacturer warranty included
⚠️ Important: This device requires a Zigbee hub or coordinator and a neutral wire. See hub options below.

🏆 Why Buy from Eiferer?

🇿🇦

Local SA Stock

Ships from Gauteng

💰

Best Prices

Competitive guaranteed

🧑🔧

Expert Support

Call Jesse: 071 678 8719

🚚

Fast Shipping

Nationwide delivery

📡 You'll Need a Zigbee Hub

The MINI-ZB2GS is a Zigbee 3.0 device — it doesn't connect directly to WiFi. You'll need a Zigbee coordinator or hub to pair and control it.

⭐ Best · Zigbee Coordinator

SONOFF Dongle Max

Next-gen Zigbee/Thread coordinator. EFR32MG24, PoE + Ethernet + WiFi + USB. Web console, dual 5dBi antennas. The ultimate Home Assistant coordinator.

View Product →
eWeLink · Zigbee Bridge

SONOFF Zigbee Bridge-P

Control via the eWeLink app. 128 Zigbee sub-devices, dual-protocol (Zigbee + WiFi), smart alarm modes.

View Product →
Budget · USB Coordinator

SONOFF Dongle Lite MG21

Compact EFR32MG21 USB dongle. 65% smaller than ZBDongle-E. Home Assistant, Zigbee2MQTT, openHAB. Includes USB extension cable.

View Product →
Hub · Smart Home Server

Home Assistant Mini Server

Run Home Assistant locally with a USB Zigbee dongle. 3,000+ integrations, total privacy, advanced automations.

View Product →

💡 What Can You Control?

Two independent on/off relay channels — control any combination of two circuits up to 16A total.

💡

Two Light Circuits

Main light + ambient light in one room

🌀

Light + Fan

Control each independently from one module

🏠

Two Rooms

Adjacent rooms sharing one wall box

🎬

Scene Triggers

Use Stepper to cycle scenes with one button

💡 Not for curtains: The MINI-ZB2GS does not support interlock, motor calibration, or percentage control. For curtain motors, use the SONOFF MINI-RBS.

🎯 Smart Features You'll Actually Use

🔀

Dual Independent Channels

Each channel operates independently — turn on the living room light while the fan stays off. 10A per gang, 16A total across both channels.

📡

Zigbee Router + Turbo Mode

Every MINI-ZB2GS strengthens your Zigbee mesh network. Turbo mode boosts signal for more stable, wider-reaching device communication.

🔄

Detach Relay Mode

Separate physical switches from relay control. Use wall switches as smart scene triggers while keeping smart bulbs powered and online.

🎛️

Stepper Function

One button, multiple scenes. Each press cycles through customisable actions for both channels — e.g. all on → channel 1 only → all off.

⏰

Schedules & Automations

Set timers, countdowns, and smart scenes via eWeLink or Home Assistant. Automate based on time, sensors, or other Zigbee devices.

🗣️

Voice Control

Works with Alexa and Google Assistant via your Zigbee hub. Also supports Siri via Matter Bridge (ZBBridge-U/eWeLink CUBE).

🇿🇦 SA Bonus: Works during load shedding if your Zigbee hub and the switch have UPS/inverter power. Configure power-on state to resume your preferred settings when power returns.

🏡 Home Assistant Integration

🔗 Integration Methods

ZHA (Zigbee Home Automation) — built into Home Assistant, auto-discovery, both channels appear as separate entities.

Zigbee2MQTT — advanced features, MQTT broker, full configuration of both channels and Stepper function.

eWeLink app — pair via ZB Bridge-P for app and voice control, smart scenes, and scheduling.

🧠 Home Assistant 📱 eWeLink 🔵 Alexa 🏠 Google Home 🍎 Apple Home (via Matter Bridge)
⭐ Recommended Setup

Home Assistant Mini Server

The ideal companion for your MINI-ZB2GS. Run Home Assistant locally with a USB Zigbee dongle for full local control over both channels.

  • Home Assistant pre-installed — ready out of the box
  • Add a Zigbee dongle — pairs directly with MINI-ZB2GS
  • 3,000+ integrations — connect everything in your home
  • 100% local — no cloud, no subscriptions

Includes 1 Year Warranty · Ships from Gauteng

View Home Assistant Server →

🔧 Installation

🛠️ DIY Installation

What you'll need:

  • Basic electrical knowledge and experience
  • Neutral wire in your wall box (required)
  • Mounting box with minimum 60mm depth
  • Zigbee hub/coordinator already set up
  • Standard tools: screwdriver & wire strippers
  • 15-20 minutes installation time

The MINI-ZB2GS fits behind your existing wall switch, completely hidden. Connect two separate load circuits to L1-out and L2-out for independent control.

⚠️ Safety First: Always turn off power at your DB board before installation. An MCB or RCBO rated at 16A must be installed before the device. For single-phase use only (110-240V). If you're not confident with electrical work, consult a qualified electrician.

🔗 Similar Zigbee Mini Products

More compact Zigbee devices that pair with the same hub.

Zigbee · 1-Gang · Mini

SONOFF ZBMINIR2

Single-channel version. Same Zigbee 3.0 mesh routing in a smaller form factor. 10A load.

View Product →
Zigbee · No Neutral · Mini

SONOFF ZBMINI-L2

Single-channel Zigbee switch that works without a neutral wire. Perfect for older SA homes.

View Product →
Zigbee · Dimmer · Mini

SONOFF MINI-ZBDIM

Need dimming? Same Zigbee protocol with trailing-edge dimming for LEDs (200VA). Power monitoring built-in.

View Product →
Zigbee · Wall Switch

SONOFF ZBM5

Full wall switch replacement. Zigbee 3.0, works with or without neutral wire. Detach relay mode.

View Product →

📋 Technical Specifications

Model / MPN MINI-ZB2GS

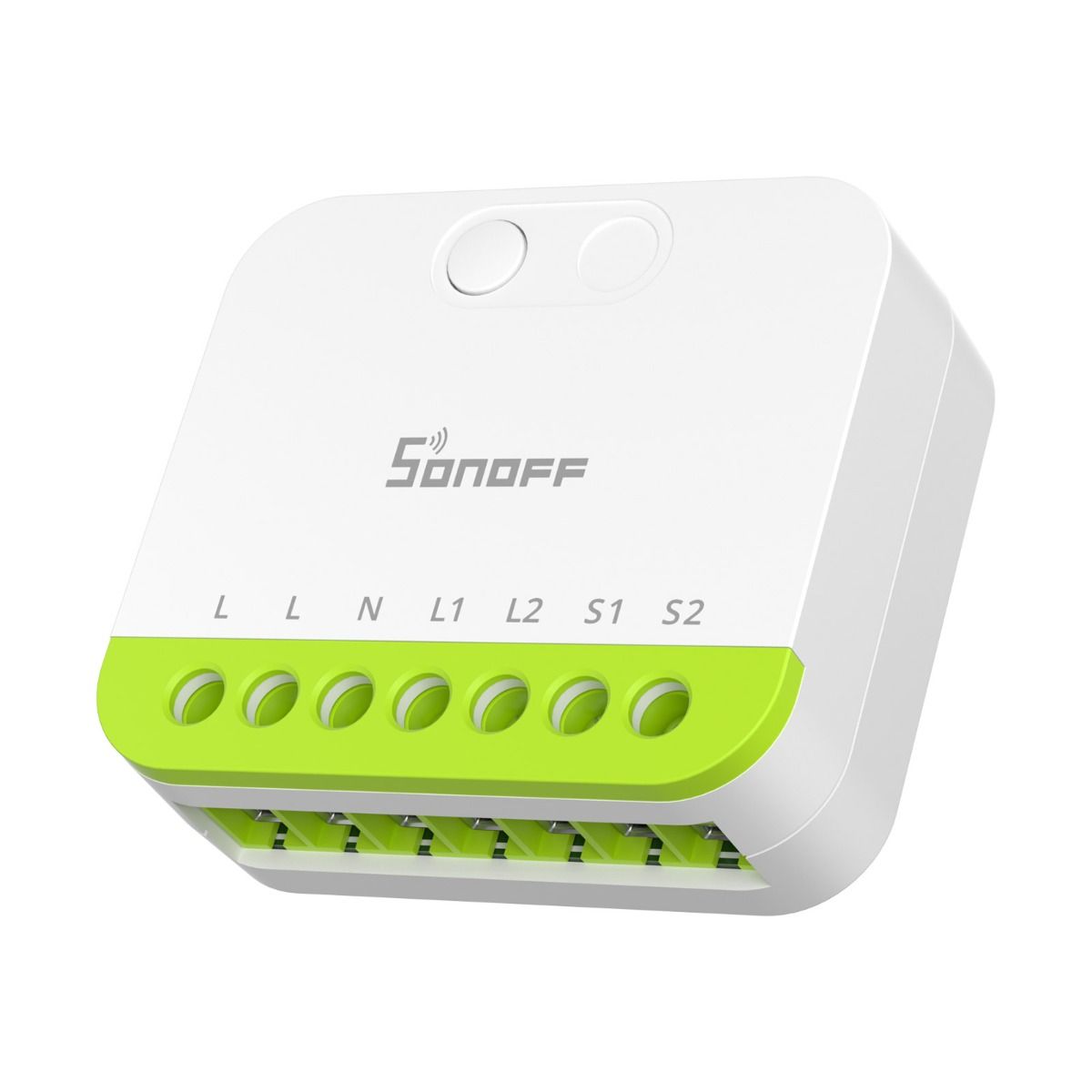

Product Name SONOFF MINI DUO 2-Gang Zigbee Smart Switch
MCU EFR32MG21 (Silicon Labs)
Protocol Zigbee 3.0 (IEEE 802.15.4, 2.4 GHz)
Zigbee Role Router (extends mesh network) + Turbo Mode
Input Voltage 110-240V AC, 50/60Hz
Channels 2 independent (dual-load)
Max Current per Gang 10A (resistive)
Max Total Current 16A (combined both channels)
External Switches Rocker & push button (S1 & S2)
Special Modes Detach relay, Stepper function, power-on state configurable
Safety Features Overheat protection, surge protection
Compatible Platforms Home Assistant (ZHA / Zigbee2MQTT), eWeLink, Alexa, Google, IFTTT
Compatible Hubs Dongle Max, ZBDongle-P/E/LMG21, ZB Bridge-P, NSPanel Pro, iHost
Neutral Wire Required
Mounting Standard wall boxes (min 60mm depth)
Dimensions 45 × 39 × 18 mm (approx.)
Warranty 1 Year Manufacturer Warranty

❓ Frequently Asked Questions

Does this work with South African power (220-240V)?
Yes! The MINI-ZB2GS is rated for 110-240V AC at 50/60Hz, so it works perfectly with SA 220-240V power.
Do I need a Zigbee hub?
Yes! This is a Zigbee device. You need a Zigbee coordinator or hub. For Home Assistant, use the Dongle Max or Dongle Lite MG21. For eWeLink app, use the ZB Bridge-P.
Does it need a neutral wire?
Yes, the MINI-ZB2GS requires a neutral wire. If your home doesn't have neutral wires, consider the single-channel ZBMINI-L2 which works without neutral.
Can I control the two channels independently?
Yes! Each channel operates completely independently. You can turn on channel 1 (e.g. main light) while channel 2 (e.g. fan) stays off, and vice versa. Each channel appears as a separate entity in Home Assistant.
What is the Stepper function?
Stepper lets one physical button cycle through multiple scenes. Each press triggers the next step — for example: press 1 = both lights on, press 2 = channel 1 only, press 3 = all off. Fully customisable in eWeLink.
Can I use it for curtains or blinds?
No. The MINI-ZB2GS does not support interlock, motor calibration, or percentage position control needed for curtain motors. For curtains, use the SONOFF MINI-RBS.
Does it work with Home Assistant?
Yes! Pair via ZHA (auto-discovery) or Zigbee2MQTT. Both channels appear as separate entities. Full local control, automations, dashboards, and voice control — all without any cloud.
Does it work during load shedding?
Yes — if your Zigbee hub and the switch have power (UPS/inverter). You can configure the power-on state (on, off, or last state) to control what happens when power returns.
What's the difference between this and the MINI-2GS (WiFi/Matter)?
This model (MINI-ZB2GS) uses Zigbee 3.0 — requires a hub, works offline via mesh, strengthens your Zigbee network. The MINI-2GS uses Matter over WiFi — connects to your router directly, works with Apple Home/Google/Alexa natively. Same dual-channel 16A specs. Choose Zigbee for Home Assistant / local control; choose Matter for easier mainstream setup.
What's included in the box?
1× SONOFF MINI-ZB2GS dual-channel Zigbee switch and user manual. Note: Wall switches, faceplates, Zigbee hub, and mounting boxes are sold separately.

📦 What's in the Box

🔀 1× SONOFF MINI-ZB2GS Switch
📖 User Manual

📝 Note: Wall switches, faceplates, mounting boxes, and Zigbee hub/coordinator are sold separately. Min 60mm wall box depth required.
