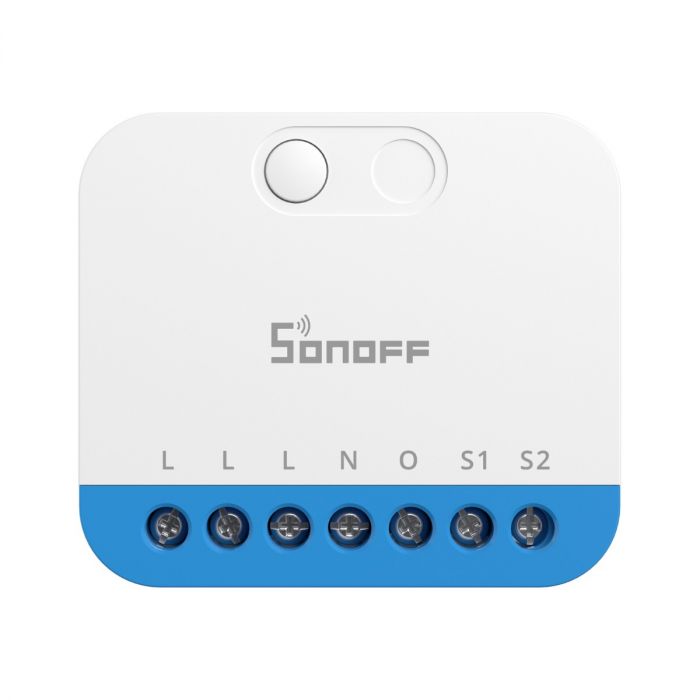

SONOFF MINI Extreme Zigbee Over WiFi Dimmer Switch | MINI-ZBDIM
SONOFF MINI Extreme Zigbee Over WiFi Dimmer Switch | MINI-ZBDIM
SONOFF MINI Extreme Zigbee Over WiFi Dimmer Switch | MINI-ZBDIM
R 749.00
R 699.00/ea
 R 0.00
R 749.00
R 699.00/ea
 R 0.00
1 1

SONOFF MINI Extreme Zigbee Over WiFi Dimmer Switch | MINI-ZBDIM

SONOFF MINI Extreme Zigbee Over WiFi Dimmer Switch | MINI-ZBDIM

R 699.00 ZAR
R 749.00 ZAR R 699.00 ZAR
Sale Sold out
Tax included.

Low stock: 8 left

📡 Smart Zigbee Dimmer for Local Control

Zigbee 3.0 dimmer with trailing-edge technology, power monitoring, and mesh routing. Perfect for Home Assistant users who want true local control — no cloud, no internet required.

🚚
Free Delivery
Orders over R2,500
🇿🇦
Local Stock
Ships from Gauteng
🛡️
1 Year Warranty
Manufacturer

✨ What Makes This Special

  • Zigbee 3.0 — works with Home Assistant (ZHA & Zigbee2MQTT), eWeLink, Alexa & Google
  • Trailing-edge dimming — optimised for modern dimmable LEDs, flicker-free
  • Wide load support — LED (200VA), halogen/incandescent (400W), electronic transformers (200W)
  • Real-time power monitoring — track energy usage as you dim
  • Zigbee mesh router — extends your network coverage, eliminates dead zones
  • 100% local control — works offline with no cloud or internet dependency
  • Two-way switching — supports 2 external switches (momentary or rocker)
  • Auto-calibration — matches dimming range to your specific bulbs
  • 1 Year Warranty — full manufacturer warranty included
⚠️ Important: This device requires a Zigbee hub or coordinator to function. See "You'll Need a Zigbee Hub" section below for compatible options.

🏆 Why Buy from Eiferer?

🇿🇦

Local SA Stock

Ships from Gauteng

💰

Best Prices

Competitive guaranteed

🧑‍🔧

Expert Support

Call Jesse: 071 678 8719

🚚

Fast Shipping

Nationwide delivery

📡 You'll Need a Zigbee Hub

The MINI-ZBDIM is a Zigbee 3.0 device — it doesn't connect directly to WiFi. You'll need a Zigbee coordinator or hub to pair and control it. Here are our recommended options:

⭐ Best · Zigbee Coordinator

SONOFF Dongle Max

Next-gen Zigbee/Thread coordinator. EFR32MG24 chip, PoE + Ethernet + WiFi + USB. Web console, dual 5dBi antennas. The ultimate Home Assistant coordinator.

View Product →
eWeLink · Zigbee Bridge

SONOFF Zigbee Bridge-P

Use this if you want to control via the eWeLink app. Supports 128 Zigbee sub-devices, dual-protocol (Zigbee + WiFi), smart alarm modes.

View Product →
Budget · USB Coordinator

SONOFF Dongle Lite MG21

Compact EFR32MG21 USB dongle. 65% smaller than ZBDongle-E. Works with Home Assistant, Zigbee2MQTT, openHAB. Includes USB extension cable.

View Product →
Hub · Smart Home Server

Home Assistant Mini Server

Run Home Assistant locally with a USB Zigbee dongle. The ultimate smart home hub — 3,000+ integrations, total privacy, advanced automations.

View Product →
💡 Best combo: Pair the MINI-ZBDIM with a Home Assistant Mini Server + Dongle Max for the most powerful local smart home setup. Or use the ZB Bridge-P if you prefer the eWeLink app.

💡 Light Compatibility

The MINI-ZBDIM uses trailing-edge dimming technology, optimised for modern dimmable LED bulbs. It also handles traditional halogen and incandescent loads.

💡

Dimmable LEDs

Up to 200VA — bulbs must be marked "dimmable"

🔆

Halogen / Incandescent

Up to 400W

🔌

Electronic Transformers

Up to 200W (dimmable type)

🔧

Auto-Calibration

Adapts dimming range to your specific bulbs

⚠️ Not compatible with: Non-dimmable LEDs, fluorescent lamps, CFLs, LED strips, or inductive loads (motors, fans). Always check your bulbs are marked "dimmable".

🎯 Smart Features You'll Actually Use

🔒

100% Local Control

Works entirely offline with Home Assistant. No cloud accounts, no internet dependency, no data leaving your home. Perfect for privacy-conscious users.

📡

Zigbee Mesh Router

Every MINI-ZBDIM strengthens your Zigbee network. It relays signals to other devices, eliminates dead zones, and creates a self-healing mesh topology.

⚡

Real-Time Power Monitoring

See exactly how much power your lights draw at every brightness level. Track daily, weekly, and monthly usage. Optimise for solar or load shedding.

⏰

Advanced Automations

Create complex automations in Home Assistant — link with motion sensors, time schedules, sunrise/sunset, or other devices. Gradual dimming at bedtime, lights on when you arrive home.

🔄

Two-Way Switch Control

Install physical switches at two different locations (S1 & S2) to control the same light. Perfect for stairs, hallways, or bedside control. Supports momentary and rocker switches.

🗣️

Voice Control

"Alexa, dim the living room to 30%." Works with Alexa and Google Assistant via your Zigbee hub. Also supports Siri via Matter Bridge (ZBBridge-U).

🇿🇦 SA Bonus: Works during load shedding if your Zigbee hub and the dimmer have UPS/inverter power. The local mesh network operates independently of your internet connection.

🏡 Home Assistant Integration

This dimmer is perfect for Home Assistant. Pair it with a Zigbee USB dongle and get full local control with zero cloud dependency.

🔗 Integration Methods

ZHA (Zigbee Home Automation) — built into Home Assistant, auto-discovery, easiest setup.

Zigbee2MQTT — advanced features, MQTT broker, more configuration options.

Matter Bridge — connect via SONOFF ZBBridge-U or eWeLink CUBE to expose to Apple Home, Google Home, and other Matter platforms.

🧠 Home Assistant 📱 eWeLink 🔵 Alexa 🏠 Google Home 🍎 Apple Home (via Matter Bridge)
⭐ Recommended Setup

Home Assistant Mini Server

The ideal companion for your MINI-ZBDIM. Run Home Assistant locally with a USB Zigbee dongle — full local control, advanced automations, and complete privacy.

  • Home Assistant pre-installed — ready out of the box
  • Add a Zigbee dongle — pairs directly with MINI-ZBDIM
  • 3,000+ integrations — connect everything in your home
  • 100% local — no cloud, no subscriptions

Includes 1 Year Warranty · Ships from Gauteng

View Home Assistant Server →

🔧 Installation

🛠️ DIY Installation

What you'll need:

  • Basic electrical knowledge and experience
  • Neutral wire in your wall box (required)
  • Zigbee hub/coordinator already set up
  • Standard tools: screwdriver & wire strippers
  • 15-20 minutes installation time

The MINI-ZBDIM fits behind your existing wall switch — completely hidden. It installs in standard South African wall boxes (60mm, 86mm, 120mm). Terminals are clearly marked for straightforward wiring.

⚠️ Safety First: Always turn off power at your DB board before installation. An MCB or RCBO rated at 2A must be installed before the MINI-ZBDIM. For single-phase use only (220-240V). If you're not confident with electrical work, consult a qualified electrician.
💡 After installation: Run the built-in auto-calibration (long-press button for 10 seconds, or via eWeLink app) for smooth, flicker-free dimming matched to your specific bulbs.

🔗 Similar Zigbee Mini Products

More compact Zigbee devices from our store that pair with the same hub.

Zigbee · Switch · Mini

SONOFF ZBMINIR2

Same mini form factor but on/off only (no dimming). Zigbee 3.0 router. Ultra-compact, fits any wall box.

View Product →
Zigbee · No Neutral · Mini

SONOFF ZBMINI-L2

Zigbee switch that works without a neutral wire. Perfect for older SA homes. On/off relay, Zigbee 3.0.

View Product →
Matter · WiFi Dimmer · Mini

SONOFF MINI-DIM

Prefer WiFi over Zigbee? Same dimming specs but uses Matter over WiFi. No hub required — connects directly to your router.

View Product →
Zigbee · Wall Switch

SONOFF ZBM5

Zigbee smart wall switch replacement. Works with or without neutral wire. Detach relay mode for smart bulbs.

View Product →

📋 Technical Specifications

Model / MPN MINI-ZBDIM
MCU EFR32MG21 (Silicon Labs)
Protocol Zigbee 3.0 (IEEE 802.15.4, 2.4 GHz)
Zigbee Role Router (extends mesh network)
Input Voltage 220-240V AC, 50/60Hz (SA Standard)
Max Current 2A
LED Load Up to 200VA (dimmable LEDs only)
Halogen / Incandescent Up to 400W
Electronic Transformer Up to 200W (dimmable type)
Dimming Technology Trailing-edge (optimised for LEDs)
Power Monitoring Real-time wattage tracking
Overheat Protection TC temperature sensor, automatic cut-off
External Switches 2× momentary or rocker (S1 & S2)
Zigbee Range Up to 120m (open space)
Compatible Platforms Home Assistant (ZHA / Zigbee2MQTT), eWeLink, Alexa, Google, IFTTT
Compatible Hubs Dongle Max, ZBDongle-P/E/LMG21, ZB Bridge-P, NSPanel Pro, iHost
Mounting Standard SA wall boxes (60mm, 86mm, 120mm)
Dimensions 45 × 39.4 × 16.8 mm
Weight 24.5 g
Warranty 1 Year Manufacturer Warranty

❓ Frequently Asked Questions

Does this work with South African power (220-240V)?
Yes! The MINI-ZBDIM is rated for 220-240V AC at 50/60Hz, which is the South African electrical standard.
Do I need a Zigbee hub?
Yes! This is a Zigbee device — it does not connect to WiFi directly. You need a Zigbee coordinator or hub. For Home Assistant, use the Dongle Max or Dongle Lite MG21. For eWeLink app, use the ZB Bridge-P.
What's the difference between this and the MINI-DIM (WiFi/Matter)?
This model (MINI-ZBDIM) uses Zigbee 3.0 — requires a hub, works offline, mesh network routing, ideal for Home Assistant users. The MINI-DIM uses Matter over WiFi — connects directly to your router, no hub needed, works with Apple Home/Google/Alexa natively. Same dimming specs (200VA LED / 400W halogen). Choose Zigbee for local control and Home Assistant; choose Matter/WiFi for easier setup with mainstream platforms.
Does it need a neutral wire?
Yes, the MINI-ZBDIM requires a neutral wire. Most SA homes built after 2000 have neutral wires. If unsure, have an electrician check before purchasing.
Will this work with my LED downlights?
Most likely yes! This dimmer supports up to 200VA of dimmable LED loads using trailing-edge dimming. Make sure your LEDs are specifically marked "dimmable". After installation, run the auto-calibration (long-press button 10 seconds) for smooth, flicker-free performance.
Does it work with Home Assistant?
Absolutely! This is perfect for Home Assistant. Pair it using ZHA (built-in, auto-discovery) or Zigbee2MQTT (advanced features). You'll get full local control, dimming, power monitoring, automations, and custom dashboards — all without any cloud.
Does it extend my Zigbee network?
Yes! The MINI-ZBDIM acts as a Zigbee router when powered. It relays signals to other Zigbee devices, strengthening coverage and eliminating dead zones. The more Zigbee routers you have, the stronger your mesh network.
Does it work during load shedding?
Yes — if your Zigbee hub and the dimmer both have power (UPS/inverter). Unlike WiFi devices that lose connection during outages, the Zigbee mesh operates independently of your internet connection.
Can I use this without internet?
Yes! That's one of the biggest benefits of Zigbee. Once paired with Home Assistant or another local coordinator, the MINI-ZBDIM works entirely offline. No internet needed for day-to-day operation.
What's included in the box?
1× SONOFF MINI-ZBDIM Zigbee dimmer module, quick start guide (English), 1 year warranty card, and installation template. Note: Wall switches, faceplates, Zigbee hub, and mounting boxes are sold separately.

📦 What's in the Box

📡 1× SONOFF MINI-ZBDIM Dimmer
📖 Quick Start Guide (English)
🛡️ 1 Year Warranty Card
📐 Installation Template

📝 Note: Wall switches, faceplates, mounting boxes, and Zigbee hub/coordinator are sold separately.
