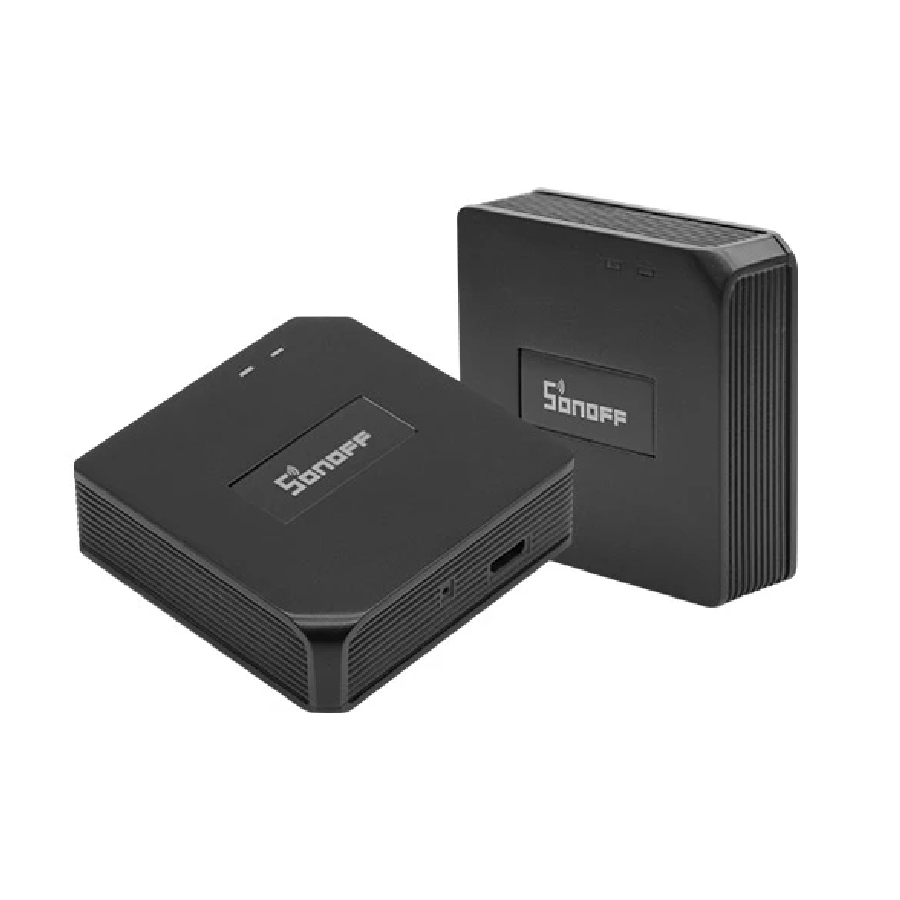

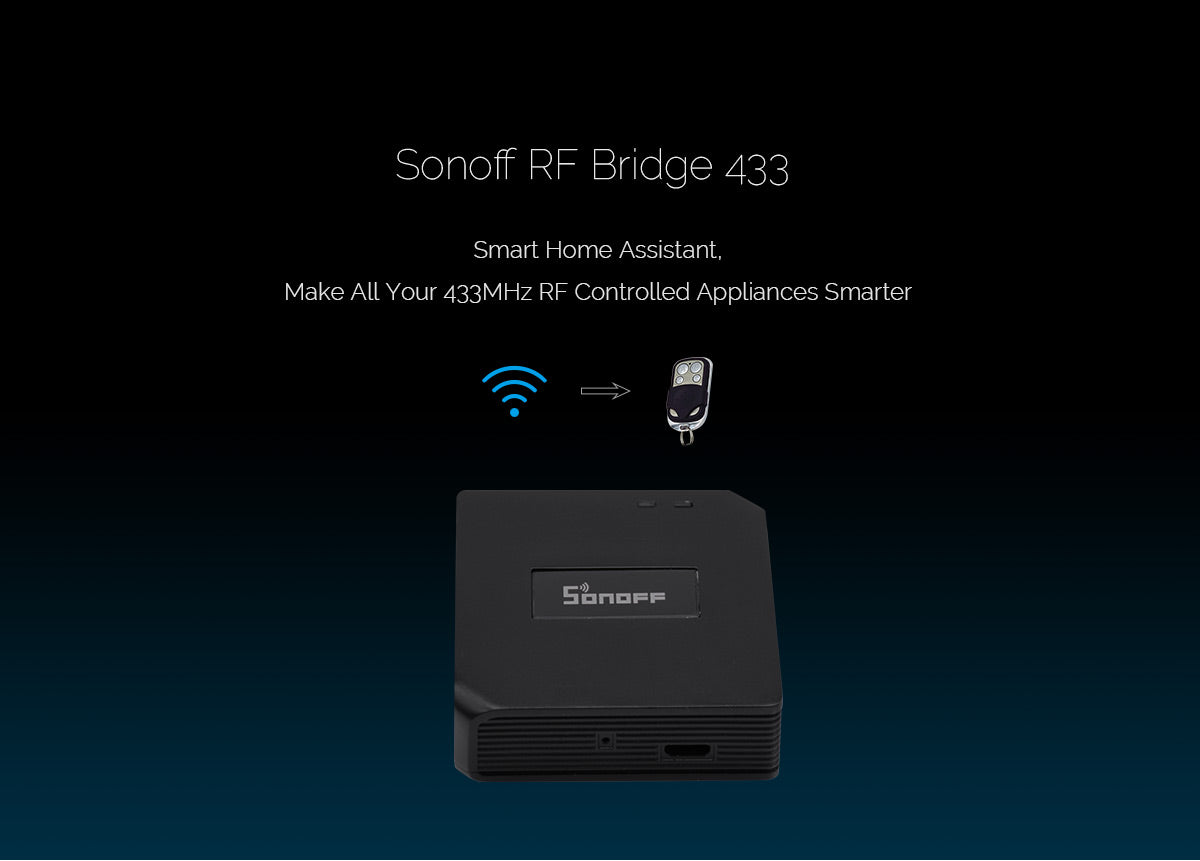

Sonoff Wifi/Rf bridge Refurbished

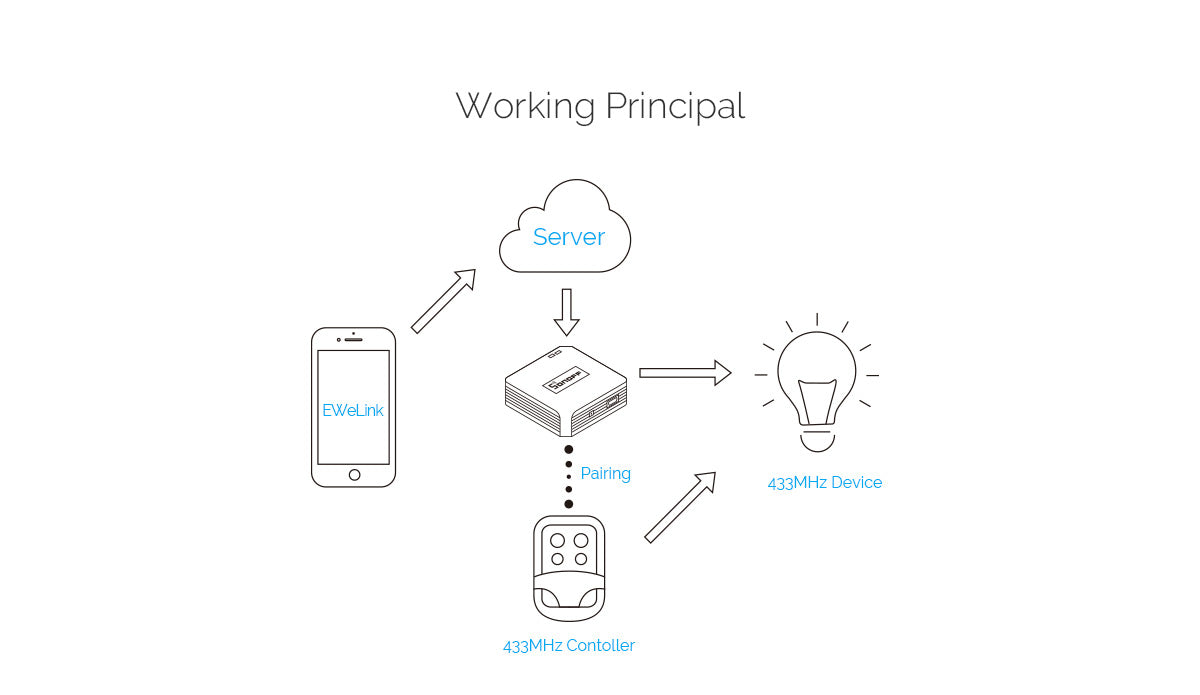

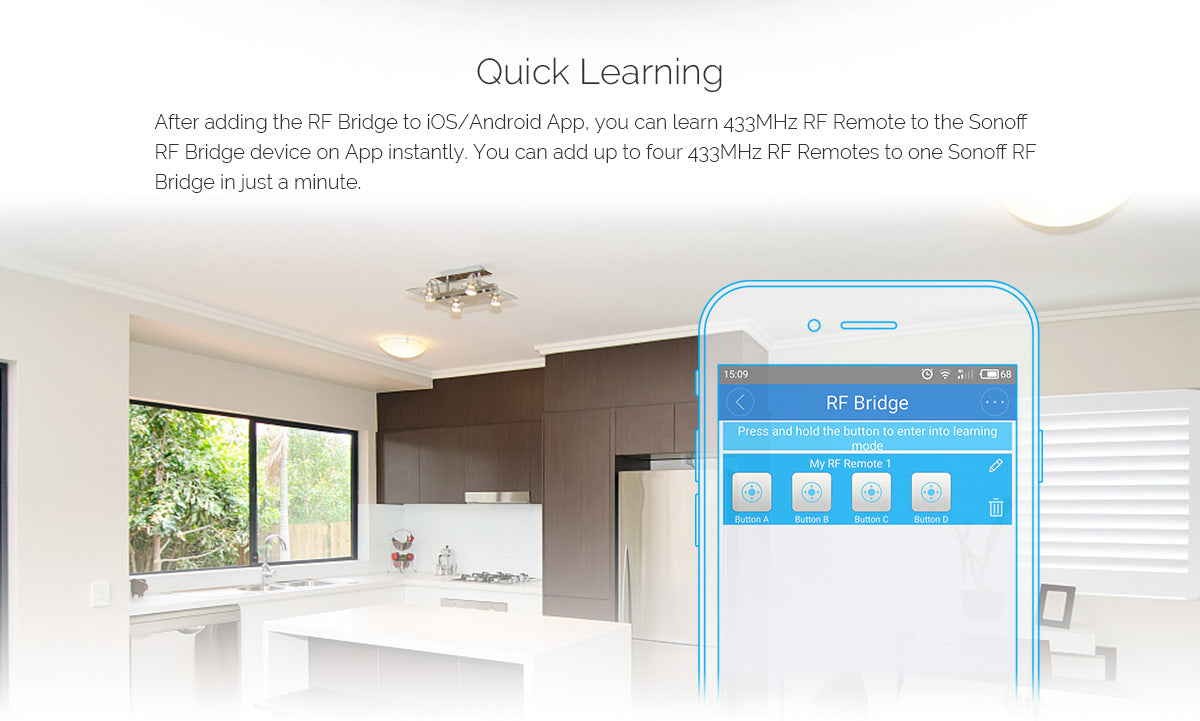

This RF Bridge 433 can convert most of the 433.92MHz RF Remotes into WiFi wireless. By adding the RF wireless Bridge to iOS/Android App eWeLink WiFi wirelessly, You can add up to four RM433 RF or alarms, also add them together (max. 4 devices).

It can be used for most of the 433.92MHz RF Remote controlled products, like RF controlled switch, RF controlled socket, RF controlled bulb, RF controlled door opener, etc. You can set totally 8 schedule/countdown/loop timers to turn on/off the RF controlled products.

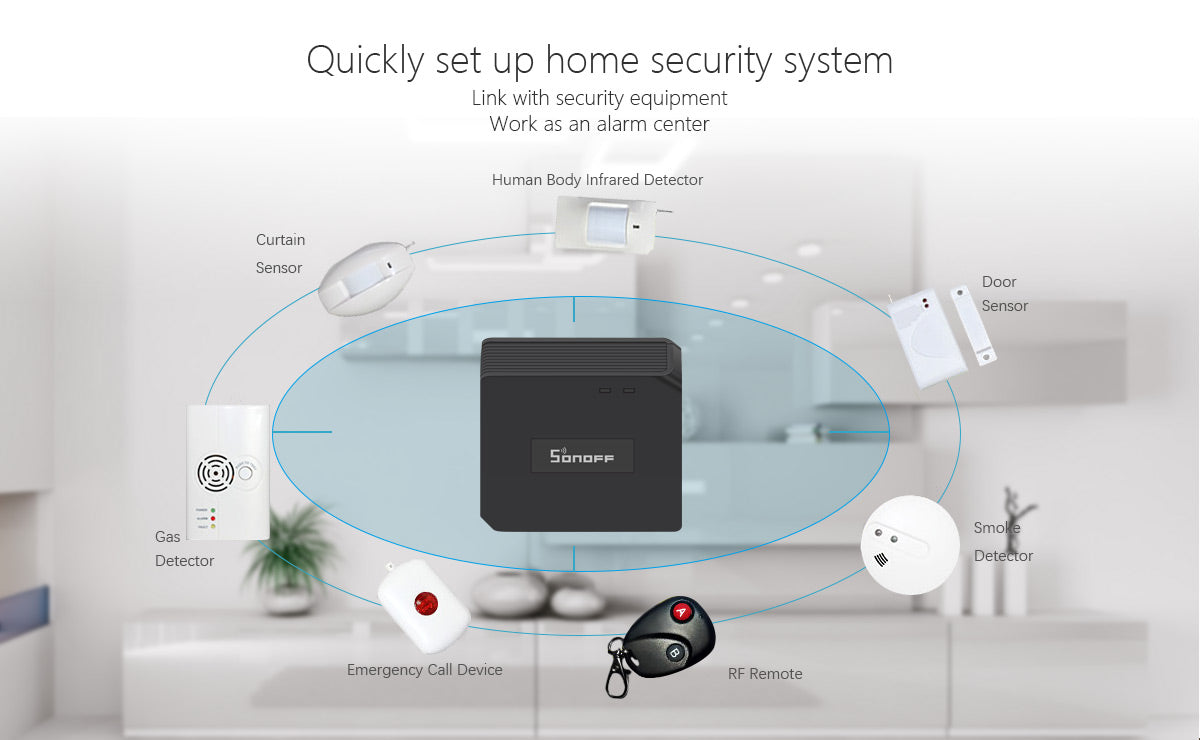

Even more exciting is that it will work with the 433.92MHz door magnetic sensor, 433.92MHz human body IR sensor, and more other 433.92MHz sensors to realize security alarm, and allowing you to DIY smart scenes. Note that the alarm push only comes in the owner's account, those users being shared can't view the alarm push.

PIR2 is a 433.92MHz RF PIR motion sensor that for human detection. The motion detector can work with the Sonoff RF Bridge 433, providing human detected alarm message push to your phone.

Eachen PIR2

DW1 is a door and window alarm sensor. The door alarms can work with Sonoff RF Bridge 433. DW1 door alarm sensor detects the opening status and immediately sends alarm notification message to the app.

Note 1:

• The receiving supports fixed code 433.92 frequency, like PT2260, PT2262, PT2264, EV1527, etc.
• The product doesn't support to learn rolling code and dynamic code
• You can't see device status changes in the App.

Note 2:

What's new on Android & iOS 2.5.0 and higher versions?

• Scheduled/countdown timers are supported.
• iOS App supports to add this product.
• 433MHz RF curtain switch and RF alarm are supported.



Works With Amazon Alexa

To control Sonoff RF Bridge, you'll need to say RF Remote name and button name together.

Standard voice control commands phrases (if you just say the RF Remote name, Alexa will turn on/off all buttons of that RF Remote immediately):

Alexa, turn on {RF Remote Name}
Alexa, turn off {RF Remote Name}

Alexa, turn on {RF Remote Name} {ButtonName}
Alexa, turn off {RF Remote Name} {ButtonName}

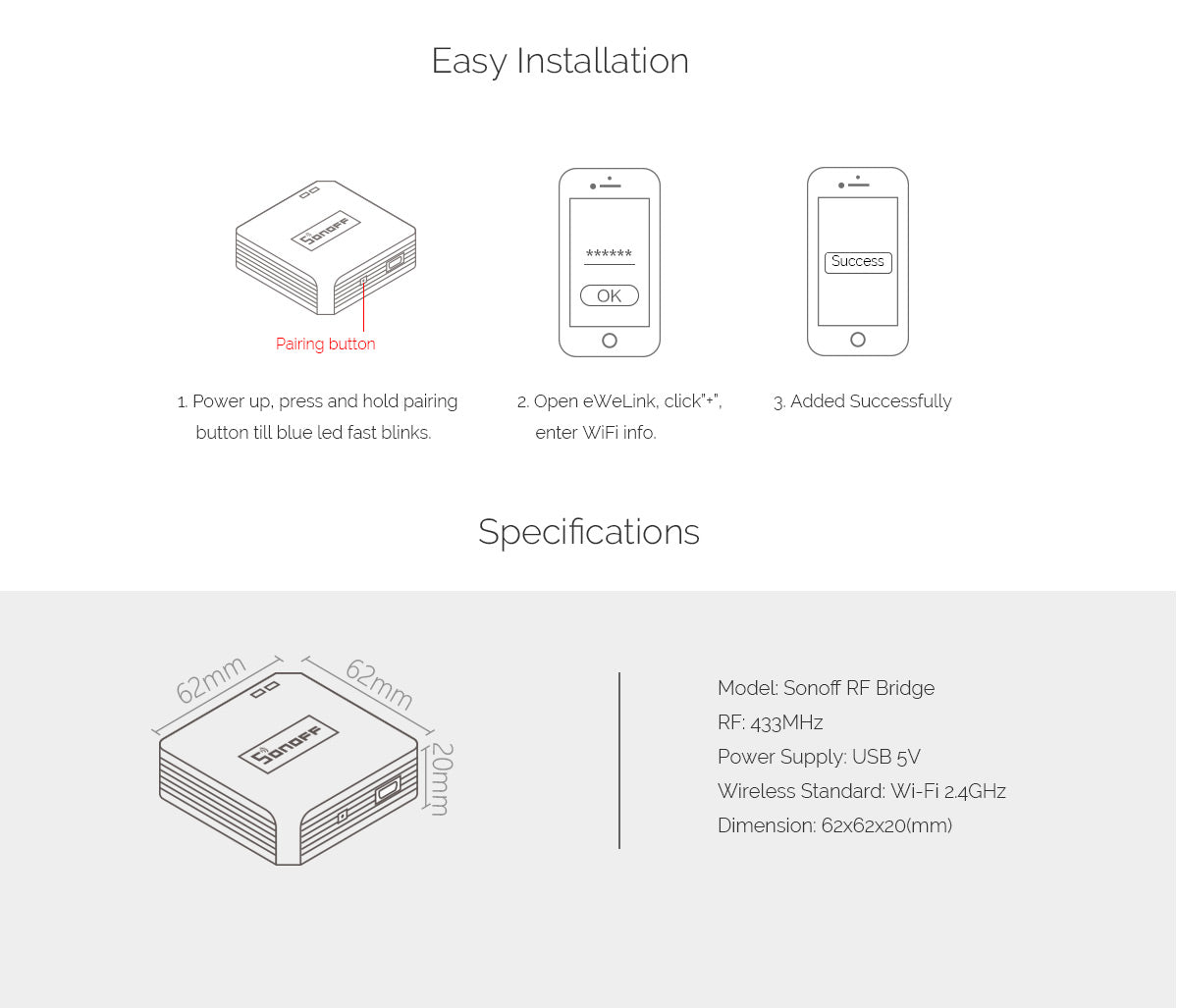

Specifications for RF Bridge 433:

• Power Supply: USB 5V
• Wireless Standard: WiFi 802.11b/g/n, 433.92MHz
• Security Mechanism: WPA-PSK/WPA2-PSK
• Product Dimensions: 62*62*20 (mm)
• Certificate: CE
