Eiferer_ZA

Homekit Box

Homekit Box

Regular price R 2,199.00
Regular price R 2,750.00 Sale price R 2,199.00
Sale Sold out
Tax included.

HomeBridge is a lightweight NodeJS server you can run on your home network that emulates the iOS HomeKit API. It supports Plugins, which are community-contributed modules that provide a basic bridge from HomeKit to various 3rd-party APIs provided by manufacturers of "smart home" devices.

This is a complete unit that allows you to bring items from Ewelink, Smart Life, Tuya and other popular smart home apps into Apple HomeKit. Take control through one app and set times and control your home fully. The unit plugs into the ethernet port of your router within your home and then you can log into the device and load some details and this will then bring through your devices from Ewelink, Smart Life, Tuya into HomeKit.

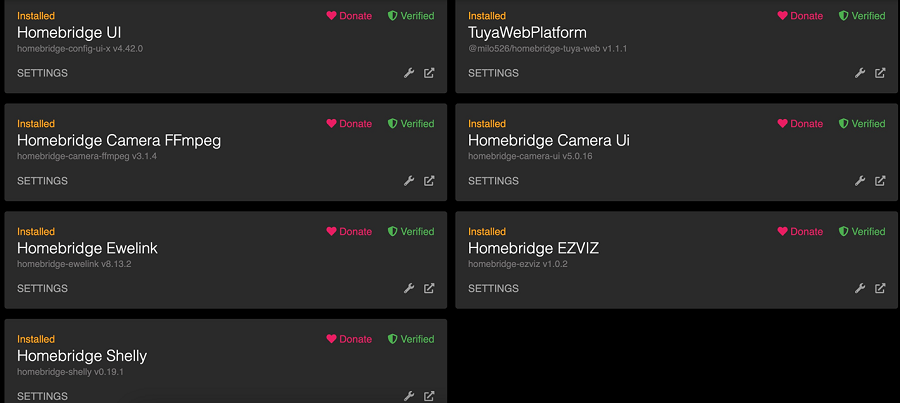

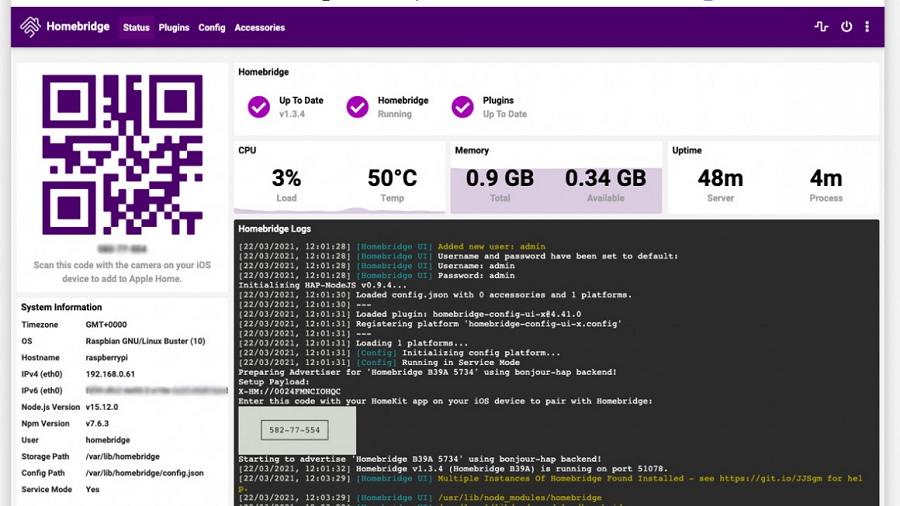

There is a simple website to log into to make changes and log into the plugin and add in additional Plugins if needed. From time to time the plugins do require an update and this can all be managed from the simple website

You can even use Siri to do the commands through your apple watch, iPhone, iPad, HomePod or Siri remote.

Add on devices sold through Eiferer for items like taking control of your Electric Gate or Garage Motor and Siri can action all while you are driving to your property. You have the ability to add in IP cameras too that will pull through to HomeKit so now you can control your home and check on  your cameras too. All items sold on Eiferer like Sonoff, Tuya/SmartLife, Eachen, Shelly, Broadlink all will work in HomeKit.

The only requirement for all to operate is a HomePod, Apple TV 4th Gen and above or iPad. This is the hub/gateway for all to operate your home when you not home.

  • Processor

– Broadcom BCM2837B0 64bit SoC ARM Cortex-A53 Quad Core

  • Clock Speed

– 1.4GHz

  • RAM

– 1GB LPDDR2 SDRAM

  • Storage

– microSD Card Port

  • GPIO Header

– Expanded 40-pin  (2 x 20 strip)

  • USB Ports

– 4 x USB2.0 Ports  (300Mbps Speeds)

  • GFX Architecture

– Dual Core VideoCore IV® Multimedia Co-Processor @ 400MHz/300MHz

  • Video/Audio Out

– 4-pole 3.5mm Analog Audio/Composite Video Port



– Full-sized HDMI 1.3a Port



– Raw LCD Port  (MIPI DSI)

  • Video Input

– MIPI CSI  (Fits the Common RPi Camera Ribbon Cable)

  • Ethernet

– Gigabit Ethernet (Limited to 300Mbps via USB 2.0)

  • WiFi

– 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac

  • Bluetooth

– Bluetooth 4.2, BLE

  • Power Requirements

– 5V DC @ 2.5A via microUSB / 5V DC via GPIO Header / PoE via HAT

  • Low-Level Peripherals

– 27 x GPIO



– UART



– I2C bus



– SPI bus with Two Chip Selects

  • Firmware Support
