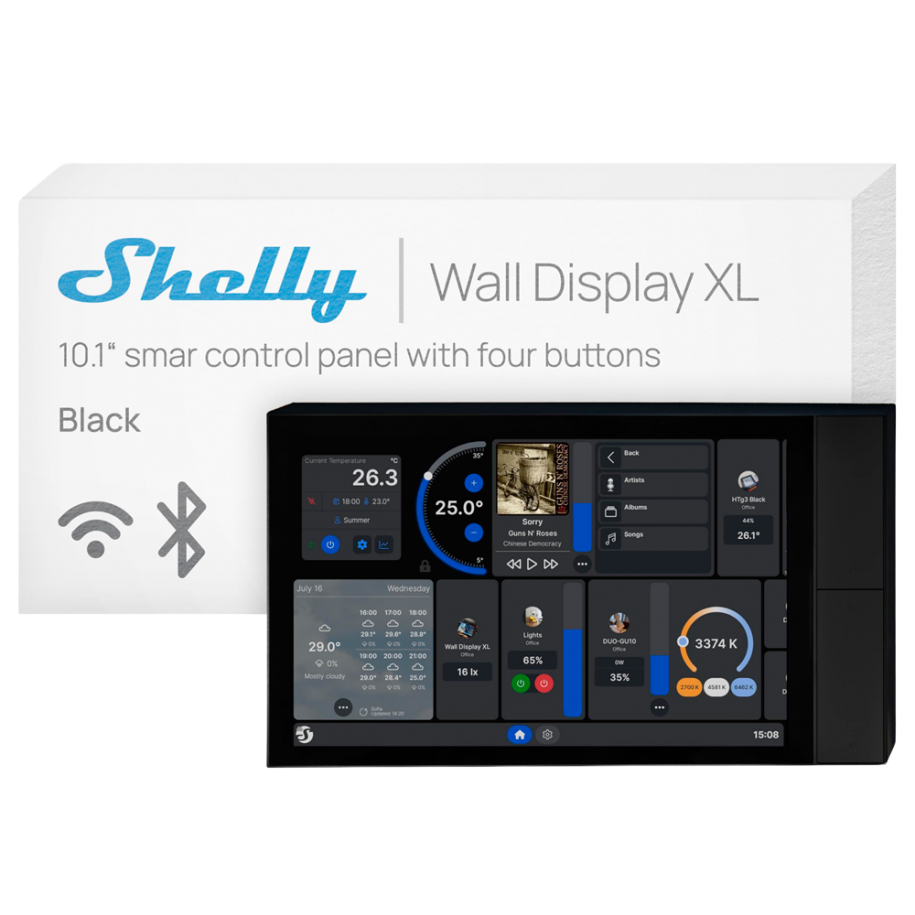

Shelly Wall Display XL — 10.1" Smart Home Control Panel (Black)

R 7,999.00

Out of Stock

R 7,999.00 Shelly Wall Display XL — 10.1…

🖥️ Shelly Wall Display XL — 10.1" Smart Home Control Panel (Black)

Your entire smart home on one screen. The Shelly Wall Display XL is a 10.1" HD touchscreen control panel with a built-in 5A relay (1500W), quad-core processor, stereo speakers, and four customisable physical buttons. It installs in a standard EU wall box and runs Android 11 — giving you full control of lights, climate, scenes, and media from a single wall-mounted panel. Wi-Fi 6 dual-band (2.4/5GHz) and Bluetooth 5.4 ensure fast, reliable connections. Works natively with the Shelly Smart Control app, Home Assistant, MQTT, and webhooks. MPN: SH-WALL-DISPLAY-XL-B.

🚚

Free Delivery

Orders over R2,500

🇿🇦

Local Stock

Ships from Gauteng

🖥️

10.1" HD Touch

1280 x 800 px

📶

Wi-Fi 6 + BT 5.4

Dual-Band

📱 Shelly App📶 Wi-Fi 6 Dual-Band🔵 Bluetooth 5.4🏠 Home Assistant📡 MQTT🔌 5A Relay (1500W)🔊 Stereo Speakers🌡️ Climate Control⚙️ Android 11

⚡ Key Features

10.1" HD Touchscreen — responsive colour display (1280 x 800 px) with fully customisable home screens; installs in portrait or landscape orientation
Quad-Core Processor — Rockchip RK3566 with 2 GB RAM running Android 11 for snappy, lag-free performance
Built-in 5A Relay — directly control lights, fans, or appliances up to 1500W from the wall box where it's installed; neutral wire required
Four Physical Buttons — fully programmable for quick actions, scene activation, or media control without unlocking the screen
Wi-Fi 6 Dual-Band — 2.4 GHz and 5 GHz for fast, reliable connectivity; Bluetooth 5.4 acts as a BLE gateway
Stereo Speakers — integrated dual 2W speakers for audio alerts, notifications, internet radio, and media playback
Speaker Integration — control Bluetooth speakers and Sonos devices; stream internet radio directly from the panel
Proximity & LUX Sensors — screen wakes automatically when someone approaches; brightness adjusts to ambient light
Power Monitoring — track real-time energy consumption of all connected Shelly PM devices in the room
Climate Control — pair with a Shelly BLU H&T sensor to function as a thermostat for heating/cooling management
Home Assistant Native — runs Home Assistant directly on the display; also supports MQTT and webhooks for deep integration
Remote Access — monitor and control the display and linked devices from anywhere via the Shelly Smart Control app
EU Wall Box Mount — designed for standard European flush-mount electrical wall boxes
USB-C Power Option — can be powered via USB-C (5V/3A) for testing and setup, in addition to mains wiring (100–240V AC)

🏠 Perfect For

🏡

Whole-Home Dashboard

Control lights, scenes, climate, and media from one central wall-mounted screen. Replace multiple apps with a single touch panel.

🏨

Hotels & Guest Houses

Guest-friendly room control without needing a smartphone. Physical buttons for lights, Do Not Disturb, and climate — intuitive for any visitor.

🏢

Offices & Commercial

Meeting room control, HVAC scheduling, and energy monitoring from one panel. Track power consumption across connected Shelly PM devices.

🔧

Home Assistant Users

Run Home Assistant directly on the display. MQTT and webhook support for advanced automation. The ultimate HA wall dashboard.

🏠 Home Assistant Integration

The Wall Display XL supports direct Home Assistant operation — run your HA dashboard right on the 10.1" touchscreen. It also integrates via MQTT and webhooks for advanced automation, making it the ideal wall-mounted HA control panel for power users.

⚡ Installation note: The Wall Display XL requires Live (L), Neutral (N), and Earth wires for mains installation. The built-in relay handles loads up to 1500W / 5A. Professional electrician installation recommended. Alternatively, power via USB-C (5V/3A) for testing and non-relay use cases.

💡 Pro tip: Use the four physical buttons as quick-access scene controls — "Good Morning", "Movie Night", "Bedtime", and "All Off" — without needing to unlock the touchscreen. Guests and children can use the panel without any app.

🏆 Why Buy from Eiferer?

🇿🇦

Local SA Stock

Ships from Gauteng

💰

Best Prices

Competitive guaranteed

🧑🔧

Expert Support

Call Jesse: 071 678 8719

🚚

Fast Shipping

Nationwide delivery

📋 Technical Specifications

Product	Shelly Wall Display XL
Colour	Black
Display	10.1" HD colour touchscreen (1280 x 800 px), 5-point capacitive
Processor	Rockchip RK3566 Quad-Core
RAM	2 GB
Operating System	Android 11
Wi-Fi	Wi-Fi 6 Dual-Band (2.4 GHz & 5 GHz)
Bluetooth	Bluetooth 5.4 (BLE gateway)
Built-in Relay	5A / 1500W max load (240V AC)
Physical Buttons	4 fully programmable buttons
Speakers	2 x 2W stereo speakers
Sensors	Proximity sensor + Brightness (LUX) sensor
Power Supply	100–240V AC 50/60Hz (mains) or USB-C 5V/3A
Neutral Wire	Required (for relay operation)
Mounting	Standard EU electrical wall box (portrait or landscape)
App	Shelly Smart Control (iOS & Android)
Integration	Home Assistant · MQTT · Webhooks · Sonos
Warranty	2 Year Manufacturer Warranty (including replacement)

📦 What's in the Box

1 x Shelly Wall Display XL (Black)
1 x Mounting Hardware
1 x Quick Start Guide

❓ Frequently Asked Questions

Does it work with Home Assistant?

Yes. The Wall Display XL can run Home Assistant directly on its screen, and integrates via MQTT and webhooks for advanced automation. It's one of the best wall-mounted HA dashboards available.

Does it need a neutral wire?

Yes — for mains installation with relay operation, you need Live, Neutral, and Earth wires. For testing or non-relay use, you can power it via USB-C (5V/3A).

Can it control non-Shelly devices?

Directly, it controls Shelly ecosystem devices. However, via Home Assistant, MQTT, or webhooks, you can integrate and control virtually any smart home device from the panel.

Can I mount it in landscape?

Yes. The display supports both portrait and landscape orientation in a standard EU wall box.

Does it work with Sonos?

Yes. You can control Sonos speakers and play internet radio from the panel. It also connects to Bluetooth speakers via BT 5.4.

Will it fit a South African wall box?

The Wall Display XL is designed for standard EU flush-mount wall boxes. SA uses a mix of wall box standards — check your wall box dimensions before purchase. An electrician can advise on compatibility or assist with adapting the installation.

Does it work with Apple Home or Alexa?

Not natively — the Shelly ecosystem works with the Shelly Smart Control app, Home Assistant, and MQTT. Shelly devices can be exposed to Alexa and Google Home via the Shelly cloud, but the display itself is a Shelly-native control panel.
