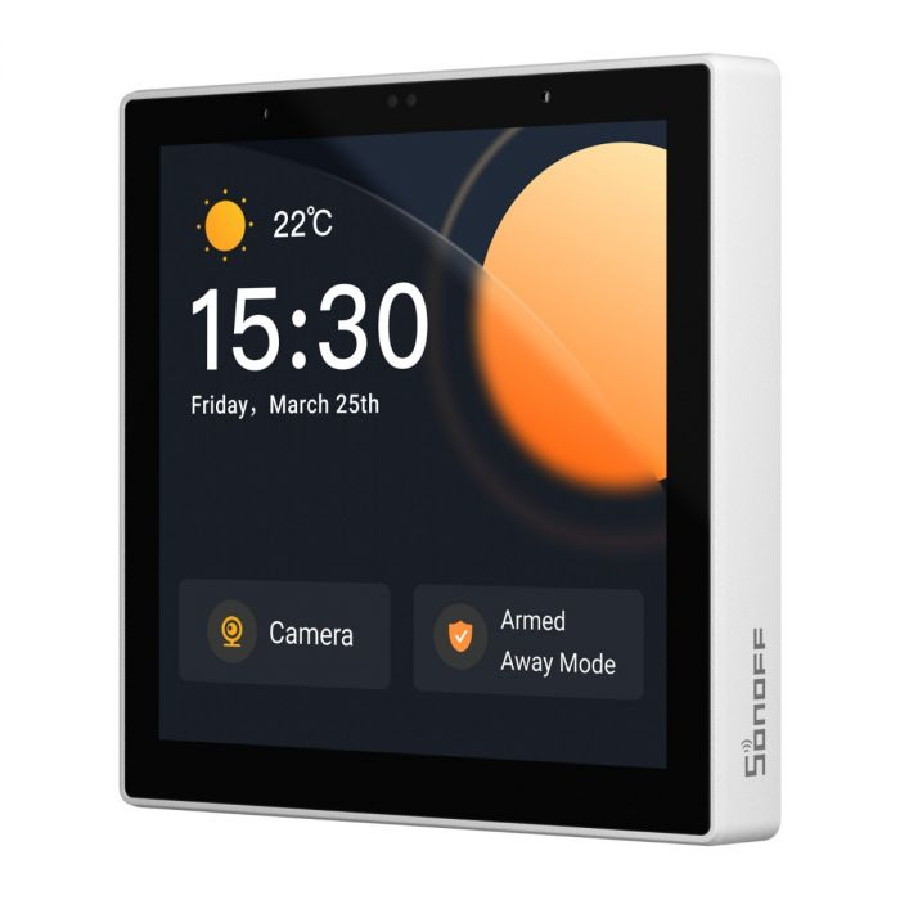

NSPanel Pro Smart Home Control Panel 2x2 80 - White
NSPanel Pro Smart Home Control Panel 2x2 80 - White
25 in stock
NSPanel Pro: All-in-One Smart Home Control Panel with Zigbee Hub & Security
✅ Unlimited Device Control
Manage an unlimited number of SONOFF devices from a single panel—whether smart lights, cameras, security sensors, switches, and more. Compatible with all current and future SONOFF products.
✅ Built-in Zigbee 3.0 Hub
Add Zigbee devices quickly and in batches via the touchscreen. Enjoy stable connections and wide coverage thanks to the Zigbee 3.0 standard. Control connected devices with voice assistants like Alexa and Google Home.
✅ Customizable Home Security Modes
Set up 3 arming modes with different device groups. When armed, any triggered sensor will cause the panel to sound an alarm and send instant notifications to your phone.
✅ Smart Temperature Control
Select your temperature source devices (e.g., TH Elite) and control execution devices (e.g., MINIR4M, ZBMINIL2) to create a personalized thermostat that maintains your ideal room temperature.
✅ Multi-Camera Live Viewer
Use NSPanel Pro as a display to stream live footage from up to four camera types. Monitor areas like your living room, garage, and bedroom in real time directly on the panel.
🧠 Smart Device Control | 🔗 Zigbee 3.0 Hub | 🔒 Security Alarm Modes | 🌡 Thermostat Integration | 🎥 Camera Monitoring







































Specifications :
| Zigbee |
IEEE 802.15.4 (Zigbee 3.0) |
|---|---|
| Wi-Fi |
IEEE 802.11 b 2.4GHz |
| Input |
100-240V AC 50/60Hz |
| Max Power Consumption |
5W MAX; 150mA |
| TFT Screen Size |
3.95" (Capacitive Screen) |
| Screen Resolution |
480 x 480 |
| MCU |
PX30 |
| CPU |
4-cores Cortex-A35 |
| GPU |
Mali-G31GPU |
| RAM |
2GB, DDR3 |
| ROM |
8GB, eMMC 5.1 |
| Dimension | 86x86x39.5mm |
| Shell Materials |
PC V0+CRS+Toughened Glass |
|
|
