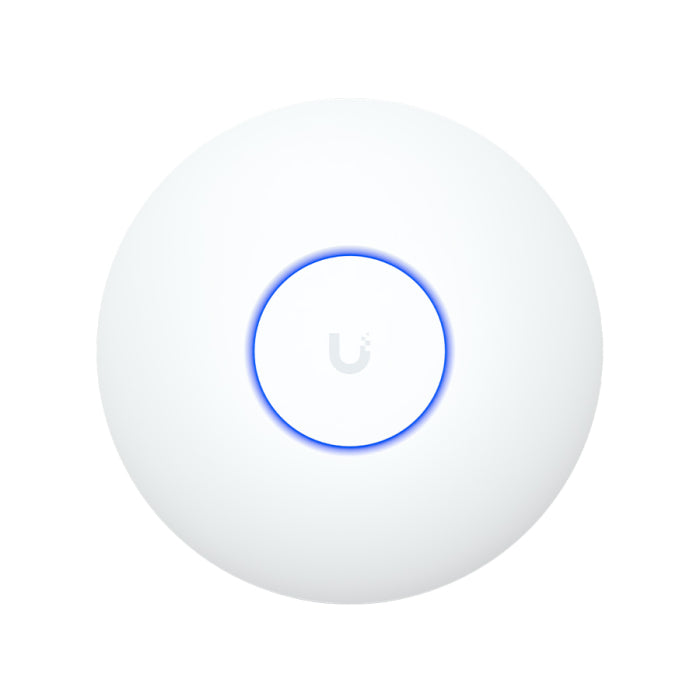

📶 Ubiquiti UniFi WiFi 7 Long Range Dual Band AP (U7-LR)
Long-range WiFi 7 for bigger spaces. The U7-LR is an indoor, dual-band WiFi 7 (802.11be) access point built for range, with 3x3 MU-MIMO on 5GHz and 2x2 MU-MIMO on 2.4GHz for an aggregate data rate of up to 5Gbps. A 360° beam pattern, high-gain antennas and a 2.5GbE uplink make it a strong choice for large homes, offices, guest houses and showrooms. It is powered over a single PoE cable and managed through the UniFi Network Application. MPN: U7-LR.
⚡ Key Features
- WiFi 7 (802.11be) — dual-band radios with 3x3 MU-MIMO on 5GHz and 2x2 MU-MIMO on 2.4GHz; up to 5Gbps aggregate data rate
- Built for Range — 360° beam-width with 4dBi (2.4GHz) and 6dBi (5.8GHz) antenna gain to cover larger floor plans
- Fast Radios — up to 688Mbps on 2.4GHz and 4.3Gbps on 5.8GHz
- 2.5GbE Uplink — 1x 10/100/1000/2500 Ethernet port so the wired link keeps up with WiFi 7 speeds
- Single-Cable Install — powered by 802.3af/at PoE (42.5–57V), drawing a maximum of 14W
- Ceiling or Wall Mount — flexible placement for the best coverage
- Wide Operating Range — rated from -30°C to 50°C
- UniFi Managed — runs UniFi OS and is configured through the UniFi Network Application alongside your UniFi gateway and switches
🏠 Perfect For
Large & Multi-Storey Homes
Long-range coverage for big floor plans, thick walls and hard-to-reach corners.
Offices & Co-Working
Fast, centrally managed WiFi 7 for busy teams and plenty of connected devices.
Guest Houses & Lodges
Reliable guest WiFi across rooms and common areas, managed from one dashboard.
Retail & Showrooms
Ceiling-mounted coverage that stays out of sight and out of the way.
📋 Technical Specifications
| Product | Ubiquiti UniFi WiFi 7 Long Range Dual Band AP |
| MPN / Model | U7-LR |
| Brand | Ubiquiti |
| Type | Indoor, dual-band, long-range WiFi 7 access point |
| WiFi Standard | WiFi 7 (802.11be) |
| Radios | 5GHz 3x3 MU-MIMO · 2.4GHz 2x2 MU-MIMO |
| Data Rate | 2.4GHz: 688Mbps · 5.8GHz: 4.3Gbps (up to 5Gbps aggregate) |
| Antenna Gain | 2.4GHz: 4dBi · 5.8GHz: 6dBi |
| Beam-width | 360° |
| Ethernet Port | 1x 10/100/1000/2500 (2.5GbE) |
| Power Input | 802.3af/at PoE (injector / PoE switch not included) |
| Supported Voltage Range | 42.5 to 57V |
| Max. Power Consumption | 14W |
| PoE Output | None |
| Mounting | Ceiling or wall mount |
| Operating System | UniFi |
| Operating Temperature | -30°C to 50°C |
| Dimensions | Ø175.7 × 43 mm |
| Weight | 448 g |
| Management | UniFi Network Application |
| Regulatory | ICASA type approval (documentation available from our distributor) |
| Warranty | Manufacturer warranty, RMA handled via our local distributor |
Download the manufacturer datasheet (PDF)
📦 What's in the Box
1 x U7-LR Access Point
Mounting hardware and documentation as supplied by Ubiquiti
Not included: PoE injector or PoE switch
❓ Frequently Asked Questions
Does it come with a PoE injector?
Do I need a UniFi gateway or controller?
Will it work with my existing Gigabit switch?
Do my devices need to support WiFi 7?
Can I use it outdoors?
How many U7-LR can a USW-Lite-8-POE power?
