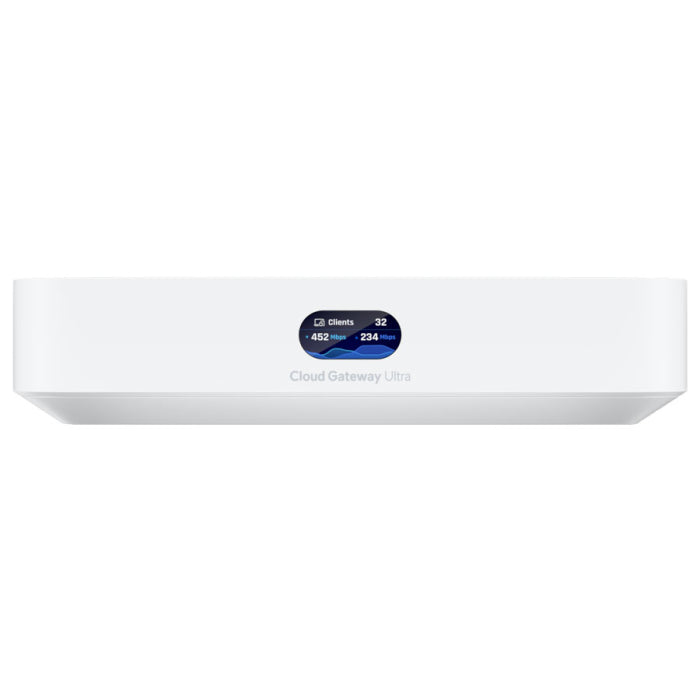

🌐 Ubiquiti Multi-WAN UniFi Cloud Gateway Ultra (UCG-Ultra)
A compact gateway with serious routing power. The UCG-Ultra is a multi-WAN UniFi Cloud Gateway that runs UniFi Network and brings a full suite of advanced routing and security features to homes and small businesses. It pairs a 2.5GbE WAN port with four Gigabit ports, a quad-core 1.5GHz processor, 3GB of DDR4 memory and a 0.96" LCM status display, all in a small desktop unit powered by a 5V 3A USB adapter (included). MPN: UCG-Ultra.
⚡ Key Features
- Multi-WAN Load Balancing — connect two internet lines and let the gateway balance traffic across them
- 2.5GbE WAN Port — 1x 10/100/1000/2500 WAN port to keep up with faster fibre packages
- Four Gigabit Ports — 3x Gigabit LAN plus 1x Gigabit port that works as LAN or WAN
- Advanced Routing & Security — a full suite of routing and security features through the UniFi Network Application
- Quad-Core Performance — quad-core ARM Cortex-A53 processor at 1.5GHz with 3GB DDR4 memory
- Status Display — 0.96" LCM screen for at-a-glance system and connection information
- Full-Stack UniFi Management — runs UniFi Network and manages your UniFi switches and access points from one interface
- Compact & Efficient — 141.8 × 127.6 × 30 mm, 0.52 kg, maximum power draw of just 6.2W
🏠 Perfect For
Connected Homes
A dependable network backbone for smart homes with plenty of connected devices.
Small Offices
Business-grade routing and central management without a rack of equipment.
Two Internet Lines
Combine a main fibre line with a second connection and balance traffic across both.
Installers & Integrators
A compact UniFi gateway that slots straight into UniFi switching and WiFi installs.
📋 Technical Specifications
| Product | Ubiquiti Multi-WAN UniFi Cloud Gateway Ultra |
| MPN / Model | UCG-Ultra |
| Brand | Ubiquiti |
| Type | Multi-WAN UniFi Cloud Gateway |
| Ethernet Ports | 3x 10/100/1000 (LAN) · 1x 10/100/1000 (LAN / WAN) · 1x 10/100/1000/2500 (WAN) |
| Processor | Quad-core ARM Cortex-A53 at 1.5 GHz |
| System Memory | 3 GB DDR4 |
| Display | 0.96" LCM status display |
| Power Input | 1x 5V 3A USB power adapter (included) |
| Max. Power Consumption | 6.2W |
| PoE Input / Output | None / None |
| SFP Ports | None |
| USB Ports | None |
| Hardware Button | Reset |
| Mounting | Desktop |
| Operating System | UniFi |
| Operating Temperature | -10°C to 40°C |
| Dimensions | 141.8 × 127.6 × 30 mm |
| Weight | 0.52 kg |
| Management | UniFi Network Application |
| Regulatory | ICASA type approval documentation available from our distributor |
| Warranty | Manufacturer warranty, RMA handled via our local distributor |
Download the manufacturer datasheet (PDF)
📦 What's in the Box
1 x UCG-Ultra Gateway
1 x 5V 3A USB Power Adapter
Documentation as supplied by Ubiquiti
❓ Frequently Asked Questions
Does the UCG-Ultra have WiFi?
Can it power PoE devices?
Can I connect two internet lines?
Is there a licence or monthly fee?
Will it work with my fibre or ISP connection?
Can I mount it on a wall or in a rack?
