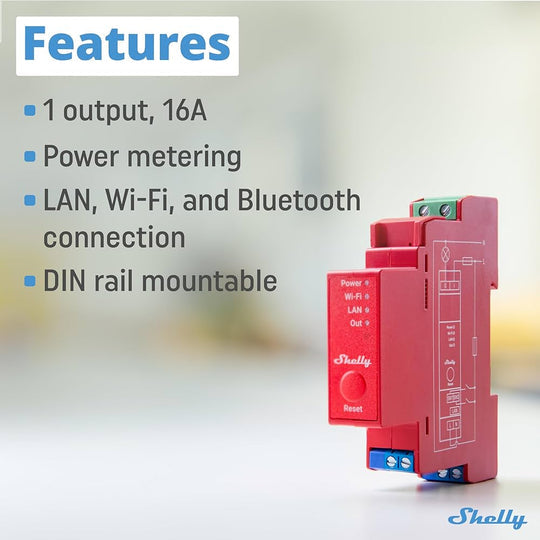

⚡ Shelly Pro 1PM — 16A DIN-Rail Smart Switch with Power Metering

A professional-grade single-channel smart switch that mounts on the DIN rail in your distribution board. The Pro 1PM switches loads up to 16A with built-in power metering, and offers WiFi, wired LAN and Bluetooth — the LAN port makes it the reliable choice for installers who don't want to depend on WiFi in a metal DB board.

🚚

Free Delivery

Orders over R2,500

🇿🇦

Local Stock

Ships from Gauteng

🔌

LAN Port

Wired reliability

🛡️

5-Yr Warranty

Pro series

⚡ Key Features

16A Relay + Power Metering — switch and measure geyser contactor circuits, pool pumps, lighting feeds and plug circuits from the DB board
Triple Connectivity — wired Ethernet (LAN), WiFi 2.4GHz and Bluetooth; Ethernet keeps automations running even when WiFi is flaky
Built-In Protections — overpower, overvoltage and overtemperature protection safeguard the connected load
DIN-Rail Mount — clean, professional install in the breaker box; 1 module wide
Local Control, No Hub — embedded web interface, schedules, scenes, MQTT, webhooks and Shelly Scripting
Works With Everything — Shelly app, Home Assistant, Google Home, Alexa, SmartThings
Switch Input — wire an existing wall switch or push-button for manual control alongside automations
5-Year Warranty — all Shelly Pro devices carry a five-year manufacturer warranty

🇿🇦 Installer Tip: Perfect for geyser control via a contactor — schedule heating around Eskom time-of-use tariffs, monitor actual consumption, and kill the circuit remotely. The LAN port means the DB board's steel enclosure can't block your connection.

📋 Technical Specifications

Model	Shelly Pro 1PM
Channels	1
Max Load	16A (~3,680W resistive)
Power Metering	Yes — per-channel, with history
Connectivity	LAN (Ethernet) · WiFi 2.4GHz · Bluetooth
Protections	Overpower · Overvoltage · Overtemperature
Integrations	Shelly app/cloud, Home Assistant, MQTT, HTTPS, Webhooks, Shelly Scripting
Mounting	DIN rail
Warranty	5 years

⚠️ DB Board Installation: Mains-voltage DIN-rail device. Installation must be done by a qualified electrician in accordance with SANS 10142.

❓ Frequently Asked Questions

Pro 1PM vs 1PM Gen4 — which should I buy?

The Pro 1PM is for the DB board: DIN-rail mount, wired LAN, 5-year warranty. The 1PM Gen4 is the compact in-wall version with Zigbee/Matter. Same job, different location.

Can it switch my geyser?

Yes — via a contactor, which is standard practice for geyser elements. You get scheduling, remote off, and consumption monitoring of the geyser circuit.

Does it work with Home Assistant?

Natively — discovered automatically over LAN or WiFi, with power/energy sensors included.
