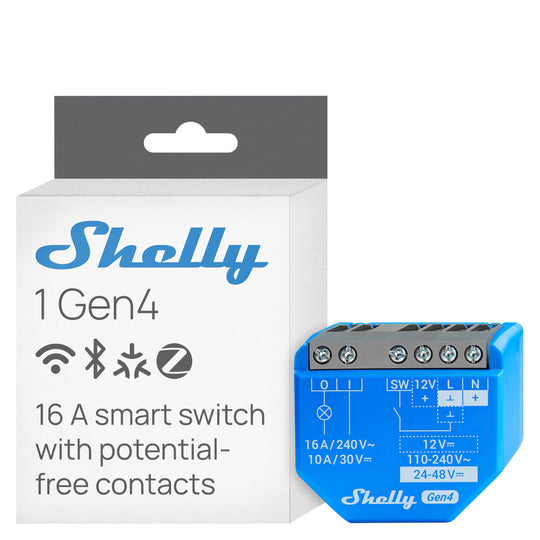

⚡ Shelly 1 Gen4 — 16A Dry Contact Smart Switch (WiFi / Zigbee / Matter)

The classic Shelly 1, now on the Gen4 multiprotocol platform. A compact 16A smart relay with a potential-free (dry contact) output — switch a separate circuit, trigger a gate motor or garage door, or control low-voltage systems. Supports WiFi, Bluetooth, Zigbee and Matter, no hub required.

🚚

Free Delivery

Orders over R2,500

🇿🇦

Local Stock

Ships from Gauteng

🔌

Dry Contact

Potential-free

🔀

4 Protocols

WiFi·BT·Zigbee·Matter

⚡ Key Features

Dry Contact Relay (16A) — the output is isolated from the supply, so you can switch a different voltage/circuit than the one powering the device
Gate & Garage Ready — pulse the trigger input of gate motors, garage doors and access control; low- and high-voltage supply supported
Multiprotocol Gen4 — WiFi 2.4GHz, Bluetooth, Zigbee (802.15.4) and Matter certified; Zigbee repeater and Bluetooth gateway functions built in
Retrofit Install — fits behind a wall switch or inside the controlled equipment; existing switches keep working
Local Control, No Hub — embedded web interface, schedules, scenes, MQTT, webhooks, KNXnet/IP and Shelly Scripting
Works With Everything — Shelly app, Home Assistant, Apple Home (via Matter), Google Home, Alexa, SmartThings

⚠️ Dry Contact = No Power Output: The relay contacts only open/close a circuit — they don't supply power to the load. That isolation is exactly what makes it safe for gate motor triggers, garage openers and mixed-voltage switching.

🇿🇦 Gate Motor Tip: Power the Shelly 1 Gen4 from your gate motor's 12V output, wire the dry contacts across the trigger terminals, and set a short auto-off timer — your CENTURION, ET or Hansa gate is now in Apple Home, Google Home and Home Assistant.

📋 Technical Specifications

Model	Shelly 1 Gen4
Channels	1 (dry contact / potential-free output)
Max Load	16A
Power Metering	No (see Shelly 1PM Gen4 for metering)
Protocols	WiFi 802.11 b/g/n (2.4GHz) · Bluetooth · Zigbee 802.15.4 · Matter
Zigbee Repeater	Yes
Supply	Low- and high-voltage supported (see manual for ranges)
Integrations	Shelly app/cloud, Home Assistant, MQTT, HTTPS, Webhooks, Shelly Scripting
Hub Required	No
Mounting	In-wall / in-equipment

❓ Frequently Asked Questions

What's the difference between Shelly 1 and 1PM?

The Shelly 1 has an isolated dry contact output and no power metering — ideal for gates, garages and switching separate circuits. The 1PM switches the same circuit that powers it and adds power metering.

Can it open my gate?

Yes — that's one of its most popular uses. Wire the dry contacts across your gate motor's trigger input and use a short auto-off timer to simulate a button press.

Zigbee or WiFi — do I have to choose?

The device runs in one mode at a time, selected before pairing: WiFi/Matter mode, or Zigbee mode with your existing coordinator.
