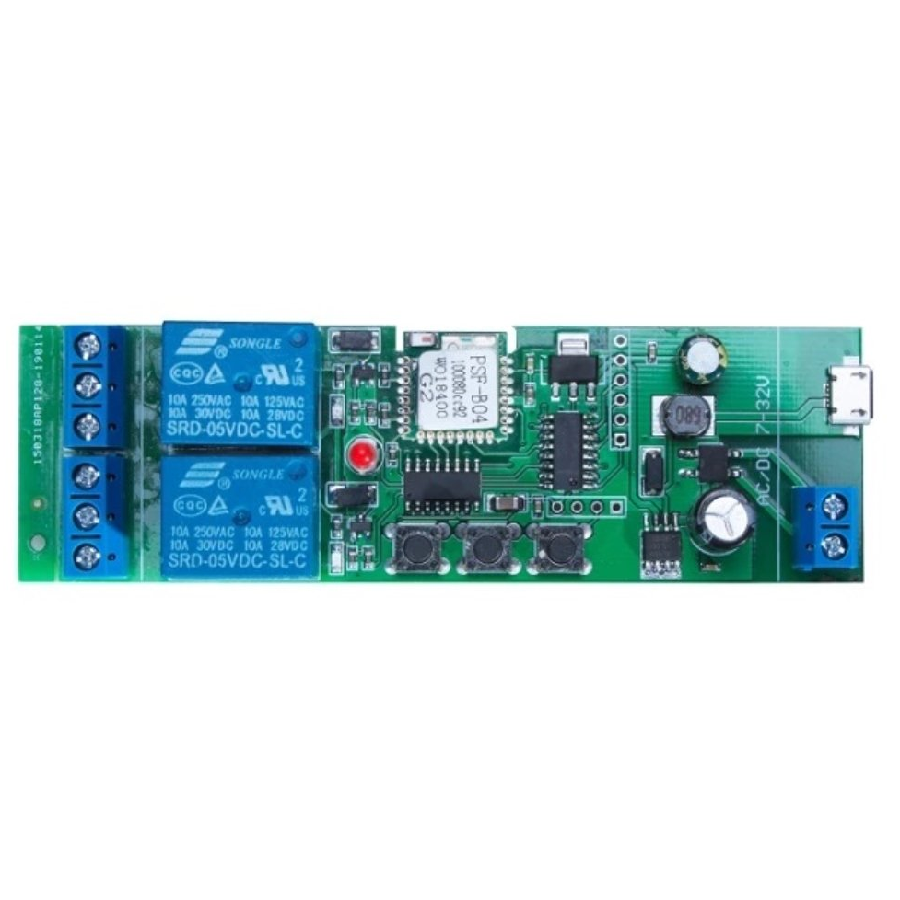

eWelink ST-DC2 — WiFi 2-Channel Inching / Self-Locking / Interlock Relay Module

R 199.00R 219.00Save R 20.00

In Stock — 65 available

⚡ eWelink ST-DC2 — WiFi 2-Channel Inching / Self-Locking / Interlock Relay Module

A 2-channel WiFi dry contact relay module with three working modes: inching (momentary), self-locking, and interlock. Two independent relays in one compact board — control your gate AND garage with a single module. Accepts DC 5–32V or AC 90–260V board power, so you can power it from your gate motor's DC output OR 230V mains. WiFi direct — no hub needed. eWeLink app with Alexa and Google support.

🚚

Free Delivery

Orders over R2,500

🇿🇦

Local Stock

Ships from Gauteng

📶

WiFi Direct

No Hub Needed

🔌

2 Channels

DC 5–32V / AC 230V

🔀 WiFi Inching Relay Range

SV · 1 Ch · DC 5–24V ST-DC2 · 2 Ch · WiFi ST-DC4 · 4 Ch · WiFi+RF

⚡ Key Features

2 Independent Dry Contact Relays — each channel has its own NO/COM/NC output; control two devices separately from one module
3 Working Modes:
• Inching (Momentary) — relay closes briefly (~1s) then auto-opens; for gate/garage triggers
• Self-Locking — stays on/off until toggled; for lights, pumps, sustained control
• Interlock — when one channel turns on, the other auto-turns off; for AC/DC motor direction control (forward/reverse), curtain open/close
Dual Voltage Input — DC 5–32V or AC 90–260V board power; can run from your gate motor's 12V DC, a 24V supply, or 230V SA mains
WiFi Direct — No Hub — connects to 2.4GHz WiFi; no Zigbee hub or bridge required
eWeLink App — remote control from anywhere, schedules, smart scenes, device sharing
Voice Control — Amazon Alexa, Google Assistant, IFTTT compatible
Manual Button — on-board button to switch working modes without the app

⚠️ Dry Contact Relay — No Power Output!
Both relay outputs are dry contacts (NO/COM/NC). The AC/DC power input only powers the WiFi board — it does NOT pass through to the relays. Wire the relay contacts across your gate motor's trigger terminals or your device's switch circuit.

🏠 Why 2 Channels?

🚗

Gate + Garage

Channel 1 triggers your driveway gate motor. Channel 2 triggers your garage door opener. One module, one app — control your entire entrance from anywhere.

🚶

Pedestrian + Main Gate

Channel 1 triggers the main gate (full open). Channel 2 triggers pedestrian mode (partial open). Share the eWeLink device with family — everyone gets both controls.

🔄

Motor Direction (Interlock)

In interlock mode, only one channel can be on at a time. Perfect for controlling AC/DC motor direction — one channel drives forward, the other drives reverse. Used for curtains, blinds, and actuators.

💡

Two Lights / Devices

In self-locking mode, each channel independently toggles a light, pump, fan, or any device. Two devices, one board, one app.

🇿🇦 SA Setup — Gate + Garage: Power the ST-DC2 from your gate motor's 12V DC output. Wire Channel 1 relay across the gate motor's trigger terminals (CENTURION/ET/GEMINI: PB/TRIG). Wire Channel 2 relay to your garage door opener's push-button terminals. Set both channels to inching mode. Now one tap in the app opens the gate, another tap opens the garage — from anywhere.

📋 Technical Specifications

Model	EACHEN ST-DC2
Channels	2 (independent dry contact relays)
Relay Output	NO / COM / NC per channel
Relay Rating	10A 250VAC / 10A 30VDC per channel
Work Modes	Inching · Self-locking · Interlock
Protocol	WiFi 2.4GHz (direct, no hub)
Board Power	DC 5–32V or AC 90–260V
App	eWeLink (iOS / Android)
Voice Control	Amazon Alexa, Google Assistant, IFTTT
Hub Required	No — WiFi direct

🔄 SV vs ST-DC2 vs ST-DC4 — Which One?

Feature	SV	ST-DC2 ★	ST-DC4
Channels	1	2	4
Protocol	WiFi	WiFi	WiFi + RF433
Power Input	DC 5–24V only	DC 5–32V / AC 90–260V	DC 5–32V / AC 90–260V
Inching	✅	✅	✅
Self-Locking	✅	✅	✅
Interlock	❌	✅	✅
Hub Needed	No	No	No
Best For	Single gate/garage	Gate + garage combo	Multi-gate / commercial

❓ Frequently Asked Questions

Can I run both channels in different modes?

The work mode applies to the entire module — both channels share the same mode (inching, self-locking, or interlock). You switch modes via the on-board button. If you need Channel 1 in inching and Channel 2 in self-locking, you'd need two separate modules.

Can I power it from 230V mains in SA?

Yes — the ST-DC2 accepts AC 90–260V input, so you can wire it to 230V SA mains. This is a major advantage over the SV (which only accepts DC 5–24V). Useful when there's no convenient DC source available.

What's the difference between this (WiFi) and the Zigbee DC2?

The Zigbee DC2 uses Zigbee protocol (requires a Zigbee hub like the ZB Bridge-P) and acts as a Zigbee mesh router. The ST-DC2 uses WiFi (no hub needed). Choose WiFi for simplicity. Choose Zigbee if you have a Zigbee mesh or need the relay to work during internet outages (Zigbee is local-only).

What is interlock mode for?

Interlock ensures only one channel can be active at a time. When Channel 1 turns on, Channel 2 automatically turns off (and vice versa). This protects motors that have forward and reverse inputs — preventing both from being energised simultaneously. Use cases: motorised curtains (open/close), DC motor direction, actuator control.

Does the relay output provide power?

No — the relays are dry contacts. They act as switches that open/close a circuit. They do not provide voltage. Wire them across the trigger terminals of whatever device you're controlling.
