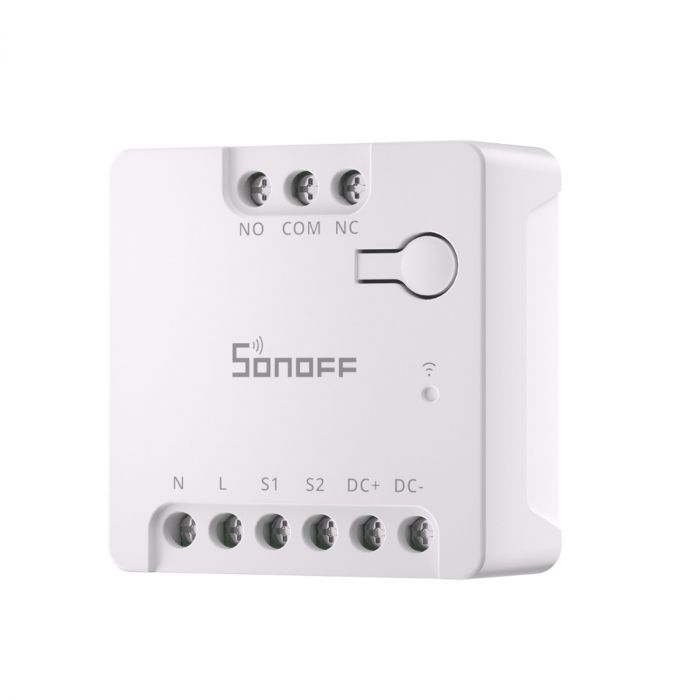

SONOFF MINI-D (Gate Controller)
R 275.00R 320.00Save R 45.00
In Stock — 30 available

🚗 SONOFF MINI-D — Smart Dry Contact Switch (Matter + WiFi, AC/DC)

Open your gate from your phone. The MINI-D is a Matter-certified dry contact smart switch with NO/NC/COM relay output, supporting both AC (100–240V) and DC (12–48V) input. Perfect for garage doors, gates, boilers, access control, and DC motors/solenoid valves up to 8W. Inching mode sends a pulse to trigger gate motors — just like pressing a remote button. MPN: MINI-D.

🚚
Free Delivery
Orders over R2,500
🇿🇦
Local Stock
Ships from Gauteng
🏠
Matter
Apple · Google · Alexa
🔌
AC or DC
12–48V DC / 100–240V AC

⚡ Key Features

  • Dry Contact Output (NO/NC/COM) — isolated relay output for signal-based control; no power passes through the relay — safe for gates, garage doors, boilers, access panels, and HVAC
  • Inching Mode (Pulse) — sends a brief pulse (configurable duration, e.g., 0.5 s) to trigger gate motors and garage door openers — exactly like pressing a remote button
  • AC/DC Dual Input — power from AC 100–240V (mains) or DC 12–48V (gate motor battery, power supply, solar) — choose one at a time
  • Matter Certified — works natively with Apple Home/Siri, Google Home, Amazon Alexa, Samsung SmartThings, and Home Assistant
  • DC Low-Power Motor Load (Max 8W) — directly control small DC motors, solenoid valves, and pumps up to 8W
  • Contactor Control — use the dry contact to safely switch high-power circuits via an external contactor
  • External Switch (S1/S2) — connect a physical wall switch alongside app and voice control
  • eWeLink App — remote control, schedules, timers, smart scenes, and device sharing
  • Voice Control — Apple Siri, Amazon Alexa, Google Assistant
  • Compact — 43 × 41 × 21.5 mm — fits behind switches, inside junction boxes, or inside gate motor housings

🏠 Perfect For

🚗

Gate & Garage Doors

Connect to your gate motor's trigger terminals. Use inching mode to send a pulse — open/close from your phone, voice, or schedule. Power from the gate motor's 12V battery.

🔥

Boiler & Heating

Replace your thermostat's dry contact switch. Smart schedule your heating. The isolated relay keeps the control circuit safe from the boiler's power supply.

🚿

Irrigation & Valves

Control DC solenoid valves (up to 8W) for smart irrigation. Power from a 12V solar/battery system. Schedule watering times via the app.

🏢

Access Control

Trigger access control panels, arm barriers, and electric strikes via the dry contact relay. Matter support enables multi-platform integration.

⚠️ Professional installation recommended. This device connects to mains or DC wiring. Installation should be done by a qualified electrician. Do not connect AC and DC simultaneously.

🚗 Related Gate/Garage Products

WiFi · DC 5–24V · Inching · Gate/Garage

eWeLink SV Inching WiFi Switch

Budget DC 5–24V WiFi switch with inching and self-locking modes. Ideal for gates and garage openers powered by low-voltage DC supplies. R179.

View Product →
12V DC · Photoresistor · Auto Lighting

XH-M131 Light Control Switch

Automatic dusk-to-dawn relay. Power from your gate motor's 12V battery to auto-switch gate lighting when it gets dark. Only R39.

View Product →

📋 Technical Specifications

Product SONOFF MINI-D Smart Dry Contact Switch
MPN / Model MINI-D
Type WiFi + Matter Dry Contact Smart Switch
AC Input 100–240V AC, 50/60 Hz
DC Input 12–48V DC
Output Dry contact — NO (Normally Open) · NC (Normally Closed) · COM
DC Motor Load Max 8W (solenoid valves, small motors)
Relay Rating 5A @ 250V AC / 30V DC
Inching Mode Yes — configurable pulse duration
External Switch S1 / S2 terminals (rocker or momentary)
WiFi IEEE 802.11 b/g/n 2.4 GHz
Matter Yes — Apple Home, Google Home, Alexa, SmartThings, Home Assistant
Dimensions 43 × 41 × 21.5 mm
MCU ESP32
App eWeLink (iOS & Android)
Certifications CE
Warranty 1 Year Manufacturer Warranty

❓ Frequently Asked Questions

How do I use it for a gate/garage door?
Connect the MINI-D's NO and COM terminals to your gate motor's trigger/wall-switch terminals. Power the MINI-D from the gate motor's 12V battery (DC+ and DC-). In the eWeLink app, enable Inching Mode with a short pulse (e.g., 0.5 seconds). Now tapping the app button or saying "Hey Siri, open the gate" sends a pulse — just like pressing the physical remote button.
Can I power it from my gate motor battery?
Yes. The MINI-D accepts DC 12–48V. Most SA gate motors have a 12V or 24V backup battery, which is within range. Connect DC+ and DC- to the battery terminals.
What is a dry contact?
A dry contact is a relay that switches without supplying power to the load. The MINI-D's relay simply opens or closes a circuit — the load gets its power from a separate source. This makes it safe and versatile for gate motors, boilers, access panels, and other signal-based devices.
Does it work with Home Assistant?
Yes — via Matter (recommended for local control), eWeLink HACS integration, or SonoffLAN. Matter provides the most seamless integration with full local control.
Can I connect AC and DC at the same time?
No. You must choose either AC or DC input — never both simultaneously. The device has separate terminals for each.
What's the difference vs the SV Inching switch?
The MINI-D is newer, supports Matter, accepts AC or DC (12–48V), and has a proper NO/NC/COM dry contact. The SV Inching is older, WiFi-only (eWeLink), and accepts DC 5–24V. If you want Matter/Apple Home support or AC power, choose the MINI-D.
