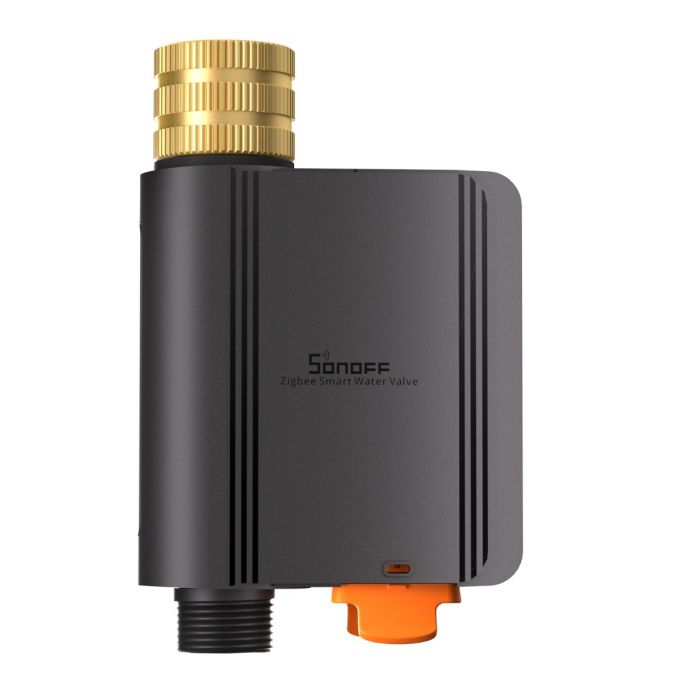

💧 SONOFF Hydro ONE — Zigbee Smart Water Valve with Flow Meter (SWV-ZFE)

Every watering, just right. The Hydro ONE is a Zigbee 3.0 smart water valve with a built-in flow meter, designed for automated garden irrigation. It supports both duration-based and volume-based watering with up to 6 programmable schedules, weather-based skip rules, and seasonal adjustments. Upgraded durable brass inlet with BSP ¾" thread — standard for South African garden taps. Dual communication via Zigbee 3.0 and Bluetooth proximity mode means it works even when the gateway is out of range. IP55-rated for outdoor use, powered by 4 × AA batteries. MPN: SWV-ZFE.

🚚

Free Delivery

Orders over R2,500

🇿🇦

Local Stock

Ships from Gauteng

💧

Flow Meter

2–45 L/min

📡

Zigbee 3.0 + BLE

Dual Comms

📡 Dual communication — Zigbee + Bluetooth. Connect to a Zigbee 3.0 coordinator / hub for full smart home integration. When the gateway is out of range or offline, switch to BLE proximity mode for direct phone control — no gateway needed.

⚡ Key Features

Built-in Flow Meter — tracks water usage in real time (2–45 L/min detection range); view and export daily, monthly, and half-yearly irrigation records
Volume-Based Watering — irrigate by litres, not just time; the valve shuts off automatically when the target volume is reached; failsafe auto-shutoff if volume isn't reached within the time limit
Duration-Based Watering — classic timed irrigation with flexible cycle options
6 Watering Schedules — odd/even day, interval (1–30 days), or custom weekday cycles
Weather-Based Skip — automatically skips all schedules within the next 24 hours during severe weather to prevent waste and plant damage
Seasonal Adjustment — freely adjustable irrigation multipliers per season so plants get the right amount year-round
Durable Brass Inlet — upgraded brass water inlet for superior corrosion resistance; BSP G3/4-14 (¾") thread — fits standard SA garden taps
Dual Communication — Zigbee 3.0 for full smart home integration + BLE proximity mode for direct phone control without a gateway
Safety Alerts — real-time monitoring for low battery, water shortage, leakage, and frost conditions with instant app notifications; built-in child lock
IP55 Weatherproof — designed for outdoor use in garden environments
Voice Control — works with Alexa and Google Home via eWeLink cloud-to-cloud integration
Apple Home Compatible — connect via a SONOFF Matter Bridge (ZBBridge-U or iHost) for Apple HomeKit integration
Open-Source Ready — Zigbee 3.0 for compatibility with Home Assistant (ZHA / Zigbee2MQTT) and other third-party platforms
Fully Local Control — with Home Assistant + ZHA or Zigbee2MQTT, all control is 100% local

🏠 Perfect For

🌿

Garden Irrigation

Automate watering by time or volume. Weather skip prevents watering during rain. Seasonal adjustment keeps plants happy year-round.

🌱

Lawn & Sprinkler Systems

Connect to your garden tap and let smart scheduling handle everything. Track exactly how much water each zone uses.

🥬

Veggie Patches & Food Gardens

Volume-based watering ensures consistent moisture. Monitor usage to reduce waste and municipal bills.

🏡

Holiday & Remote Control

Manage irrigation from anywhere via the app. BLE proximity mode means even a neighbour can control it without your gateway.

💡 Hydro ONE vs Hydro ONE Lite: The Hydro ONE (SWV-ZFE) includes a built-in flow meter for volume-based watering and water usage tracking. The Hydro ONE Lite (SWV-ZNE) is the same valve without the flow meter — duration-based watering only, at a lower price.

⚠️ Installation notes: Vertical installation is recommended for optimal flow meter accuracy. Not suitable for drinking water — designed for garden irrigation with standard tap water. Do not reverse the inlet and outlet. This is the EU/BSP version (SWV-ZFE) with G3/4-14 thread — standard for South African garden taps.

📡 Don't have a Zigbee hub yet? Pair this with our SONOFF ZBBridge-P or ZBDongle-E. Both stocked at Eiferer. The Hydro ONE also works without a gateway in BLE proximity mode.

📋 Technical Specifications

Product	SONOFF Hydro ONE
MPN / Model	SWV-ZFE (EU/BSP version)
Product Series	Hydro Series
Type	Zigbee Smart Water Valve with Flow Meter
Protocol	Zigbee 3.0 + BLE (Bluetooth Low Energy)
MCU	TLSR8656
Flow Meter	Yes — 2 to 45 L/min detection range
Thread Type	BSP G3/4-14 (¾" British Standard Pipe)
Battery	4 × AA (1.5V)
Water Pressure Range	0.06–0.8 MPa
IP Rating	IP55
Water Temperature	5°C to 60°C
Operating Temperature	5°C to 40°C
Operating Humidity	5–95% RH (non-condensing)
Dimensions	152 × 100 × 46 mm
Casing Material	PC + ABS
Coordinator Required	Any Zigbee 3.0 coordinator (or BLE proximity mode without gateway)
Works With	eWeLink (via ZBBridge) · Home Assistant · SmartThings · Amazon Alexa · Google Home · Apple Home (via Matter Bridge)
Warranty	2 Year Manufacturer Warranty

📦 What's in the Box

1 x Hydro ONE Smart Water Valve (SWV-ZFE)
4 x AA Batteries
1 x Filter Washer
1 x Quick Start Guide

❓ Frequently Asked Questions

Do I need a Zigbee hub?

For full smart home integration, yes. But the Hydro ONE also supports BLE proximity mode — connect your phone directly via Bluetooth for irrigation control, even without a gateway. For scheduling, automation, and remote access you'll need a Zigbee coordinator.

Will it fit my South African garden tap?

Yes. This is the SWV-ZFE (EU/BSP version) with G3/4-14 (¾") British Standard Pipe thread — the standard used on South African garden taps.

Can it water by volume instead of time?

Yes. The built-in flow meter (2–45 L/min) allows volume-based watering — set a target in litres and the valve shuts off automatically. A failsafe timer also stops if the target isn't reached within the time limit.

What's the difference between Hydro ONE and Hydro ONE Lite?

The Hydro ONE (SWV-ZFE) includes a built-in flow meter for volume-based watering and water usage tracking. The Hydro ONE Lite (SWV-ZNE) is the same valve without the flow meter — duration-based watering only, at a lower price. Everything else is identical.

Can it be used for drinking water?

Not recommended. Designed for garden irrigation with standard tap water.

Can I install it horizontally?

Vertical installation is recommended. Horizontal mounting may increase flow meter measurement error.

Does it work fully local (no cloud)?

Yes — with Home Assistant + ZHA or Zigbee2MQTT, all control is 100% local. BLE proximity mode also works without any internet or cloud.
