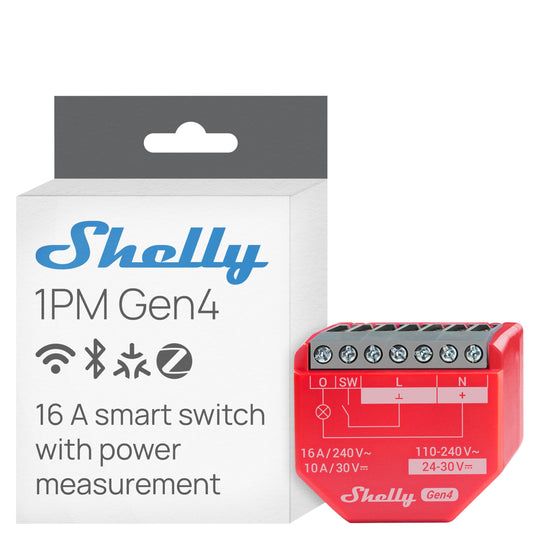

⚡ Shelly 1PM Gen4 — 16A Smart Relay with Power Metering (WiFi / Zigbee / Matter)

Shelly's fourth-generation retrofit smart relay — a compact 16A switch with built-in power metering that hides behind any existing light switch or plug point. Gen4 adds Zigbee and Matter on top of WiFi and Bluetooth, with a faster chipset and more RAM. One device, every ecosystem — no hub required.

🚚

Free Delivery

Orders over R2,500

🇿🇦

Local Stock

Ships from Gauteng

📊

Power Meter

1% accuracy

🔀

4 Protocols

WiFi·BT·Zigbee·Matter

⚡ Key Features

16A Switching + Power Metering — control lights, geysers*, pumps and appliances while measuring real-time consumption to 1% accuracy
Multiprotocol Gen4 Platform — WiFi 2.4GHz, Bluetooth, Zigbee (802.15.4) and Matter certified; pick the mode that fits your setup
Zigbee Repeater + Bluetooth Gateway — extends your Zigbee mesh and relays Shelly BLU sensors into your network
Retrofit Install — fits behind an existing wall switch; keeps your physical switch working (toggle or push-button, 2-way wiring supported)
Faster Chipset, More RAM — ESP-Shelly-C68F with lower latency and TLS 1.2 security
Local Control, No Hub — embedded web interface, schedules (up to 20), scenes, scripting, MQTT, webhooks and KNXnet/IP
Works With Everything — Shelly app, Home Assistant, Apple Home (via Matter), Google Home, Alexa, SmartThings

💡 Why the PM matters: The built-in power meter turns every switched circuit into an energy sensor — see exactly what that pool pump or heater costs you per month in Home Assistant, and get alerts if a load is drawing when it shouldn't be.

📋 Technical Specifications

Model	Shelly 1PM Gen4
Channels	1
Max Load	16A (~3,500W resistive)
Power Metering	Yes — 1% accuracy, with history
Protocols	WiFi 802.11 b/g/n (2.4GHz) · Bluetooth 5.0 · Zigbee 802.15.4 · Matter
Zigbee Repeater	Yes
CPU	ESP-Shelly-C68F
Switch Input	Toggle or momentary; 2-way/cross wiring supported
Integrations	Shelly app/cloud, Home Assistant, MQTT, HTTPS, Webhooks, KNXnet/IP, Shelly Scripting
Hub Required	No (Zigbee mode pairs with your existing Zigbee coordinator)
Mounting	In-wall (behind switch/socket)

⚠️ Note: WiFi/Matter mode and Zigbee mode are selected before pairing — the device runs in one mode at a time. *For geysers and other heavy inductive loads, always switch via a contactor.

❓ Frequently Asked Questions

What's new vs the 1PM Gen3?

Gen4 adds native Zigbee and Matter certification, a faster CPU with more RAM, and lower latency. If you run a Zigbee mesh (e.g. Zigbee2MQTT or ZHA) or an Apple Home/Matter setup, Gen4 is the one to get.

Does it need a hub?

No. In WiFi mode it connects straight to your router. In Zigbee mode it pairs with any Zigbee coordinator you already have (Home Assistant dongle, Hue bridge, SmartThings, etc.).

Can I keep using my wall switch?

Yes — the module wires in behind your existing switch, which keeps working normally alongside app, voice and automation control.
