1. Supports pairing with your wifi doorbell.
2. Easy to install and use.
3. 52 Different melodies for selection.
4. Ultra-low power design, power saving and long-lasting use.
5. The remote controlled wireless doorbell you always needed: Forget about wires, cords, drilling through walls, and electrician bills.
6. Designed for flexibility and utility, this wireless doorbell for home comes, so that you can hear their chime no matter where you are.
Working voltage: AC 90~250V
Working frequency: 433.92mhz +/-280 KHz
Power consumption: 10 mW
Transmission power :0dbm
Sensitivity: - 110 DBM
Net weight: 92 g
Volume: up to 110db
Size: 82 × 82 × 20 mm
Ding Dong Installation:
Select the appropriate range of installation from the visible doorbell (see the user manual of wi-fi visible doorbell for details), plug the receiver directly into the conventional power socket, after successful installation, normal use can press the transmitter, indoor receiver plays music and flashing. (tear off the protective film on the metal strip decoration before use).
Press the ding dong volume button for 4 seconds, the LED light will light up and then press the button of wi-fi visual doorbell within 5 seconds. When the ding dong LED flashes, the pairing will be completed.
Ding dong electrify, short press the right side of a curve key to play the last song music, short press a curve key to play the next song. 52 music optional, loop.
2. Music memory in learning mode:
Under music selected, long press the volume button for 4 seconds, and music indicator light will be long on to enter the learning state. At this time, press the button of wi-fi visual doorbell, flash indicator light, memory is completed. When the above steps are completed, automatically exit the learning state. Note: a ding dong can be used to yard 16 wi-fi visible doorbells. A wi-fi video doorbell can tinkle at most.
3. Two or more wi-fi visual doorbells correspond to the same music or the same ding dong:
Press the second point 2 to enter the learning state and learn the first wi-fi visual doorbell, press the other wi-fi visual doorbell successively or simultaneously, and then automatically exit the learning state.
4. Two or more wi-fi visual doorbells correspond to different music:
Press the second point to enter the learning state and learn the first wi-fi visual doorbell, press ding dong to select the next required music, then press the second wi-fi visual doorbell, and so on. Automatically exit the learning state after completion.
5. Two or more music/ding dong correspond to the same wi-fi visual doorbell:
Long press the first ding-dong volume button for 4 seconds to enter the learning state, press the wi-fi visual doorbell, and the pairing is successful within 5 seconds. Repeat the operation to pair the selected ding dong with this wi-fi visual doorbell one by one.

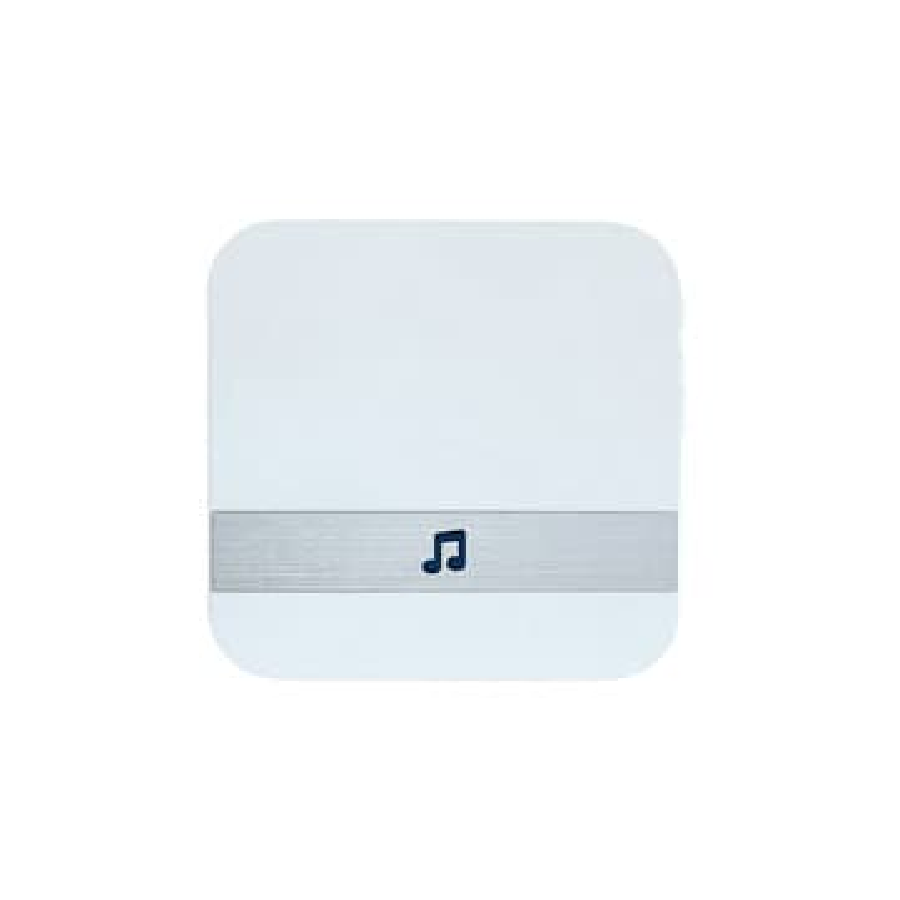

1 x Indoor Doorbell Receiver
1 x User instruction
