LED Strip Connector 10mm 4-Pin RGB | Solderless Clip-On | SMD 5050 3528

R 10.80

In Stock — 95 available

<div class="pd-trust"><div class="pd-trust-item"><div class="ico">🚚</div><div class="lbl">Free Delivery</div><div class="sub">Orders over R2,500</div></div><div class="pd-trust-item"><div class="ico">🇿🇦</div><div class="lbl">Local Stock</div><div class="sub">Ships from Gauteng</div></div><div class="pd-trust-item"><div class="ico">🔌</div><div class="lbl">4-Pin RGB</div><div class="sub">10mm Width</div></div><div class="pd-trust-item"><div class="ico">🔧</div><div class="lbl">Solderless</div><div class="sub">No Tools Needed</div></div></div>

<h2>⚡ Key Features</h2>
<ul>
<li><strong>10mm Width, 4-Pin</strong> — fits standard 10mm wide RGB LED strips with 4 copper pads (R, G, B, +12V/24V)</li>
<li><strong>Solderless Clip Design</strong> — no soldering iron needed; open the clip, slide in the strip, snap shut for a secure connection</li>
<li><strong>SMD 5050 & 3528 Compatible</strong> — works with the most common RGB LED strip types on the market</li>

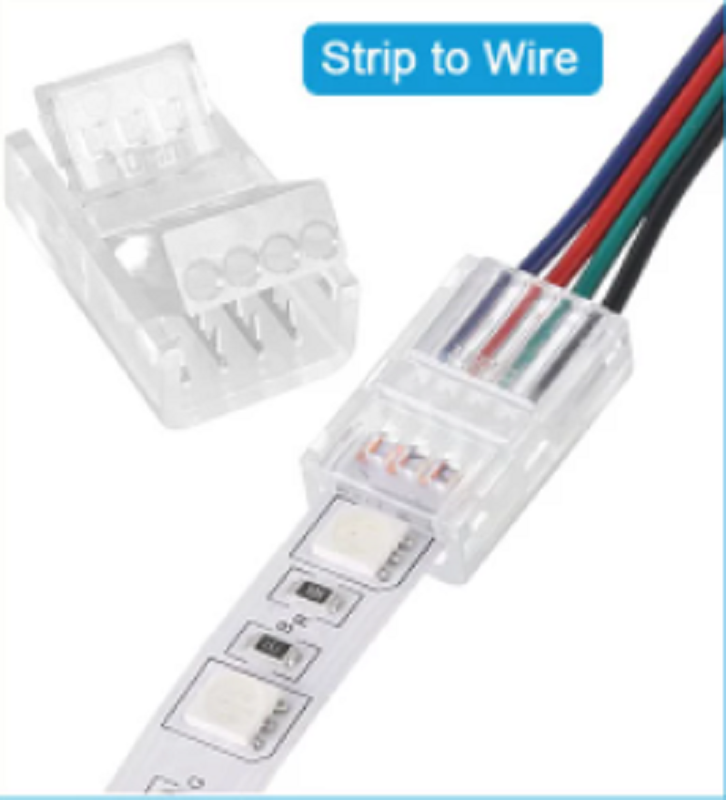

<li><strong>Strip-to-Strip or Strip-to-Wire</strong> — join two strip sections together or connect a strip to a controller/power supply via wire</li>
<li><strong>Reusable</strong> — clips can be opened and repositioned if you need to reconfigure your layout</li>
<li><strong>Compact & Discreet</strong> — small form factor that's easy to hide behind profiles, channels, or furniture</li>
</ul>

<h2>🏠 Common Uses</h2>
<div class="pd-feat-grid">
<div class="pd-feat"><div class="fi">✂️</div><h4>Reconnect Cut Strips</h4><p>Cut your LED strip at the marked cut line, then use this connector to rejoin the two pieces — perfect for routing around obstacles.</p></div>
<div class="pd-feat"><div class="fi">🔄</div><h4>Corner Turns</h4><p>Instead of bending the strip (which can damage LEDs), cut at the corner and use a connector to change direction cleanly.</p></div>
<div class="pd-feat"><div class="fi">📏</div><h4>Extend Your Strip</h4><p>Join two separate LED strip rolls end-to-end to cover longer distances without soldering.</p></div>
<div class="pd-feat"><div class="fi">🔌</div><h4>Controller Connection</h4><p>Connect the strip to an RGB controller or power supply using the wire output. Clean, professional finish.</p></div>
</div>

<div class="pd-tip"><strong>💡 Tip:</strong> Before clipping, ensure the copper pads on your LED strip are clean and properly aligned with the connector pins. Misalignment can cause individual colour channels to fail (e.g., no red, no green). Double-check polarity markings.</div>

<h2>📋 Technical Specifications</h2>
<table class="pd-specs">
<tr><td>Product</td><td>LED Strip Connector</td></tr>
<tr><td>Pin Count</td><td>4-pin (R, G, B, V+)</td></tr>
<tr><td>Strip Width</td><td>10 mm</td></tr>
<tr><td>Compatible Strips</td><td>SMD 5050, 3528, and other 10mm 4-pin RGB strips</td></tr>
<tr><td>Connection Type</td><td>Solderless clip-on</td></tr>
<tr><td>Voltage</td><td>12V or 24V DC (matches your strip)</td></tr>
<tr><td>Reusable</td><td>Yes</td></tr>
</table>

<h2>❓ Frequently Asked Questions</h2>
<div class="pd-faq">
<details><summary>Will this work with the SONOFF L1 or L3 LED strip?</summary><div class="faq-body">Check your strip's width and pin count. The SONOFF <strong>L1</strong> (12V RGB) uses 10mm 4-pin pads and should be compatible. The <strong>L3</strong> (5V RGBIC addressable) uses a different 3-pin digital protocol — this 4-pin connector is <strong>not compatible</strong> with RGBIC/WS2812B strips. Always verify your strip type before purchasing.</div></details>
<details><summary>Is soldering better than clip connectors?</summary><div class="faq-body">Soldering gives the most reliable, lowest-resistance connection. However, clip connectors are perfectly adequate for most home installations and are much easier for DIYers. If you notice flickering or colour inconsistency at a connection point, clean the pads and re-seat the clip.</div></details>
<details><summary>Can I use this outdoors?</summary><div class="faq-body">The connector itself is not waterproof. For outdoor use, apply heat-shrink tubing or silicone sealant over the connection point to protect it from moisture.</div></details>
</div>

<h2>🤝 Need Help? We're Here for You!</h2>
<div class="pd-support"><div class="pd-support-card"><div class="si">📞</div><h4>Call Us</h4><p><a href="tel:0716788719">Jesse: 071 678 8719</a><br><a href="tel:0845057481">Jason: 084 505 7481</a></p></div><div class="pd-support-card"><div class="si">🏢</div><h4>Visit Us</h4><p>8 Wildebraam Street<br>Weltevreden Park, Roodepoort<br>Gauteng, 1709</p></div><div class="pd-support-card"><div class="si">📧</div><h4>Email</h4><p><a href="mailto:info@eiferer.co.za">info@eiferer.co.za</a></p></div></div>

<div class="pd-cta"><h3>No Soldering. Just Clip & Connect.</h3><p>10mm 4-pin RGB LED strip connector — join, extend, and route your LED strips the easy way.</p></div>
